BC54PA - 1A NPN medium power transistors

General Description

NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package.

2.

Key Features

  • High collector current capability IC and ICM.
  • Three current gain selections.
  • High power dissipation capability 3.

📥 Download Datasheet

Datasheet Details

Part number BC54PA
Manufacturer Nexperia
File Size 231.32 KB
Description 1A NPN medium power transistors
Datasheet download datasheet BC54PA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC54PA NPN medium power transistors NXP
BC546 Amplifier Transistors Motorola Inc
BC546 NPN Transistor NXP
BC546 NPN Transistor Fairchild Semiconductor
BC546 NPN Transistor Kingtronics

Other Datasheets by Nexperia

Part Number Description
BC54PA-Q 45V 1A NPN medium power transistors
BC54PAS 1A NPN medium power transistors
BC54PAS-Q 1A NPN medium power transistors
BC54-10PA 1A NPN medium power transistors
BC54-10PA-Q 45V 1A NPN medium power transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

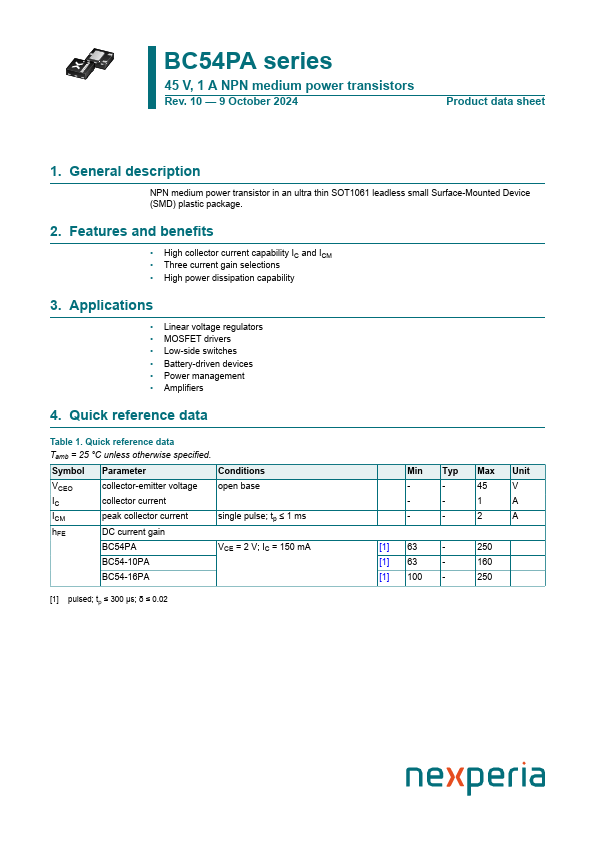

BC54PA series 45 V, 1 A NPN medium power transistors Rev. 10 — 9 October 2024 Product data sheet 1. General description NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High collector current capability IC and ICM • Three current gain selections • High power dissipation capability 3. Applications • Linear voltage regulators • MOSFET drivers • Low-side switches • Battery-driven devices • Power management • Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified.
