Datasheet Details
| Part number | BC817-25 |
|---|---|
| Manufacturer | Nexperia |
| File Size | 302.66 KB |
| Description | 45V 500mA NPN general-purpose transistors |
| Datasheet | BC817-25 BC817 Datasheet (PDF) |
|
|

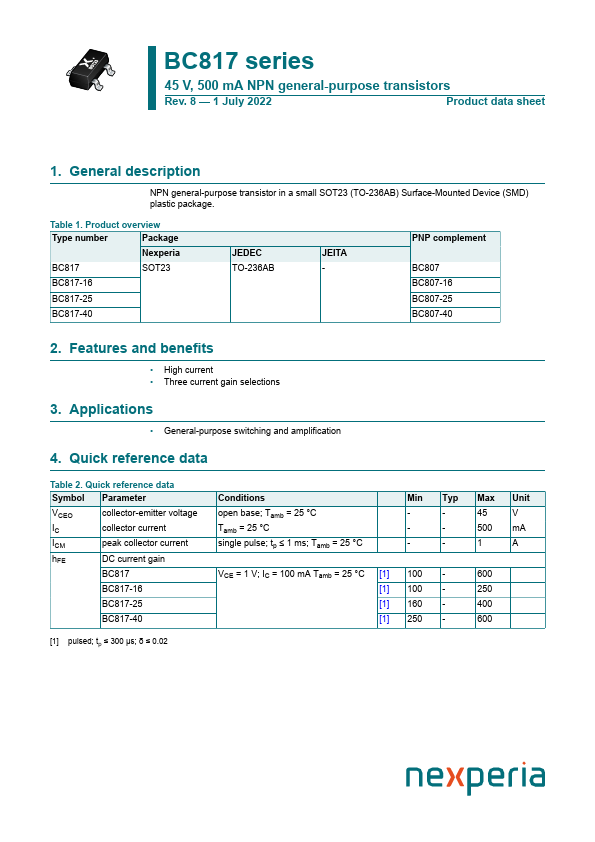

Overview: BC817 series 45 V, 500 mA NPN general-purpose transistors Rev. 8 — 1 July 2022 Product data sheet 1.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BC817-25 |
|---|---|
| Manufacturer | Nexperia |
| File Size | 302.66 KB |
| Description | 45V 500mA NPN general-purpose transistors |
| Datasheet | BC817-25 BC817 Datasheet (PDF) |
|
|
|
NPN general-purpose transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Table 1.
Product overview Type number Package Nexperia BC817 SOT23 BC817-16 BC817-25 BC817-40 JEDEC TO-236AB JEITA - PNP complement BC807 BC807-16 BC807-25 BC807-40 2.
