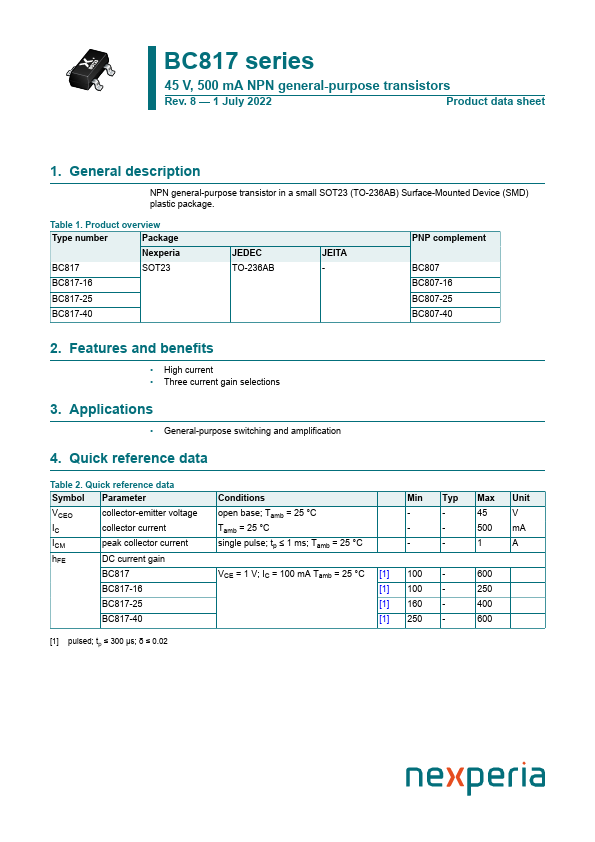

Datasheet Summary
BC817 series
45 V, 500 mA NPN general-purpose transistors
Rev. 8
- 1 July 2022
Product data sheet
1. General description
NPN general-purpose transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview
Type number
Package
Nexperia
BC817
SOT23
BC817-16
BC817-25
JEDEC TO-236AB
JEITA
- PNP plement
BC807 BC807-16 BC807-25 BC807-40
2. Features and benefits
- High current
- Three current gain selections
3. Applications
- General-purpose switching and amplification
4. Quick reference data
Table 2. Quick reference data Symbol Parameter
VCEO collector-emitter voltage
IC collector current
ICM peak collector...
