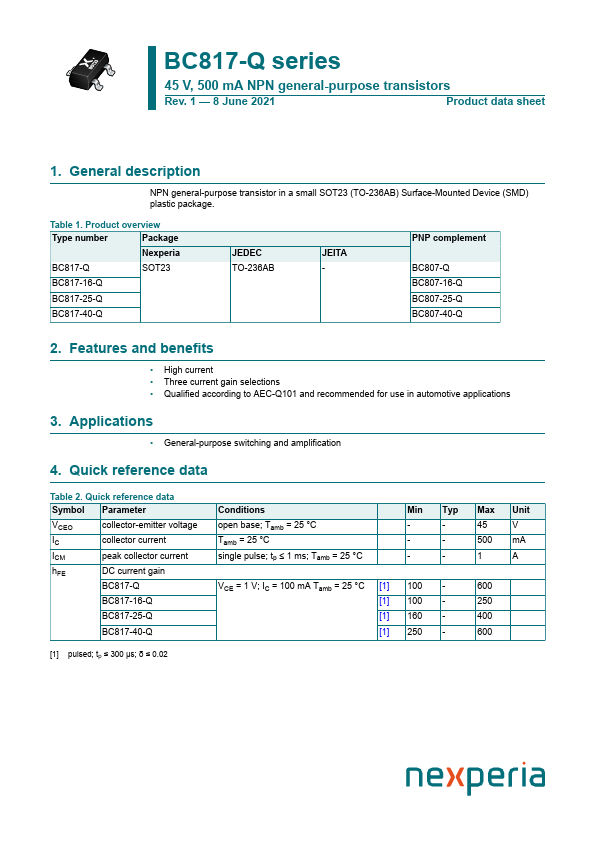

Datasheet Summary
BC817-Q series
45 V, 500 mA NPN general-purpose transistors
Rev. 1
- 8 June 2021
Product data sheet
1. General description
NPN general-purpose transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview
Type number
Package
Nexperia
SOT23
BC817-16-Q
BC817-25-Q
BC817-40-Q
JEDEC TO-236AB
JEITA
- PNP plement
BC807-Q BC807-16-Q BC807-25-Q BC807-40-Q
2. Features and benefits
- High current
- Three current gain selections
- Qualified according to AEC-Q101 and remended for use in automotive applications
3. Applications
- General-purpose switching and amplification
4. Quick reference data
Table 2. Quick reference...
