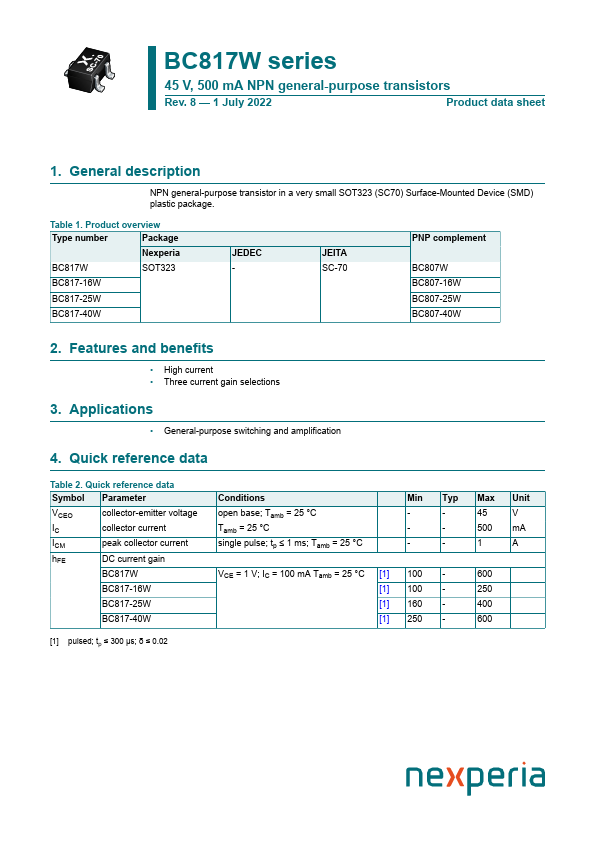

BC817W-40W
description
NPN general-purpose transistor in a very small SOT323 (SC70) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview
Type number
Package
Nexperia
BC817W
SOT323
BC817-16W
BC817-25W
BC817-40W
JEDEC
- JEITA SC-70
PNP plement
BC807W BC807-16W BC807-25W BC807-40W
2. Features and benefits
- High current
- Three current gain selections
3. Applications
- General-purpose switching and amplification
4. Quick reference data
Table 2. Quick reference data Symbol Parameter
VCEO collector-emitter voltage
IC collector current
ICM peak collector current h FE
DC current gain
BC817W
BC817-16W
BC817-25W
BC817-40W
[1] pulsed; tp ≤ 300 μs; δ ≤ 0.02
Conditions
Min open base; Tamb = 25 °C
- Tamb = 25 °C
- single pulse; tp ≤ 1 ms; Tamb = 25 °C
- VCE = 1 V; IC = 100 m A Tamb = 25 °C [1] 100 [1] 100 [1] 160 [1] 250
Typ Max Unit
- 45
- 500 m...
