BC817W - 500mA NPN general-purpose transistors

Nexperia

General Description

NPN general-purpose transistors in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

Table 1.

Key Features

High current.
Three current gain selections.
AEC-Q101 qualified 1.3.

📥 Download Datasheet

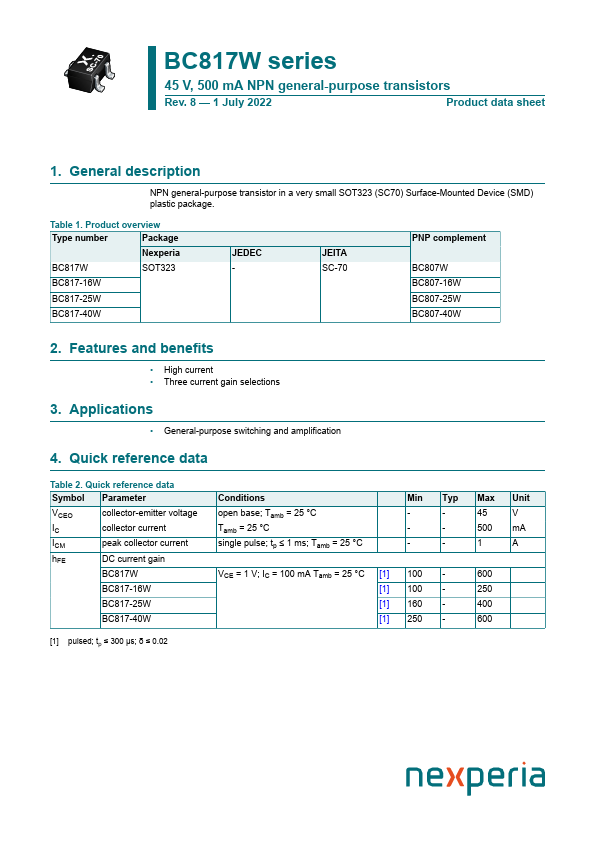

BC817W 500ma npn general-purpose transistors by Nexperia - Datasheet Preview

Datasheet Details

Part number	BC817W
Manufacturer	Nexperia
File Size	269.03 KB
Description	500mA NPN general-purpose transistors
Datasheet	BC817W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BC817W	500mA NPN general-purpose transistors	NXP
BC817W	NPN Silicon AF Transistors	Infineon Technologies AG
BC817W	SMD General Purpose NPN Transistors	Diotec
BC817W	Silicon NPN transistor	BLUE ROCKET ELECTRONICS
BC817W	NPN general purpose transistor	GME

Other Datasheets by Nexperia

Part Number	Description
BC817	500mA NPN general-purpose transistors
BC817-16	500mA NPN general-purpose transistors
BC817-16QB-Q	500mA NPN general-purpose transistors
BC817-16QCH-Q	500mA NPN general-purpose transistors
BC817-25	500mA NPN general-purpose transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

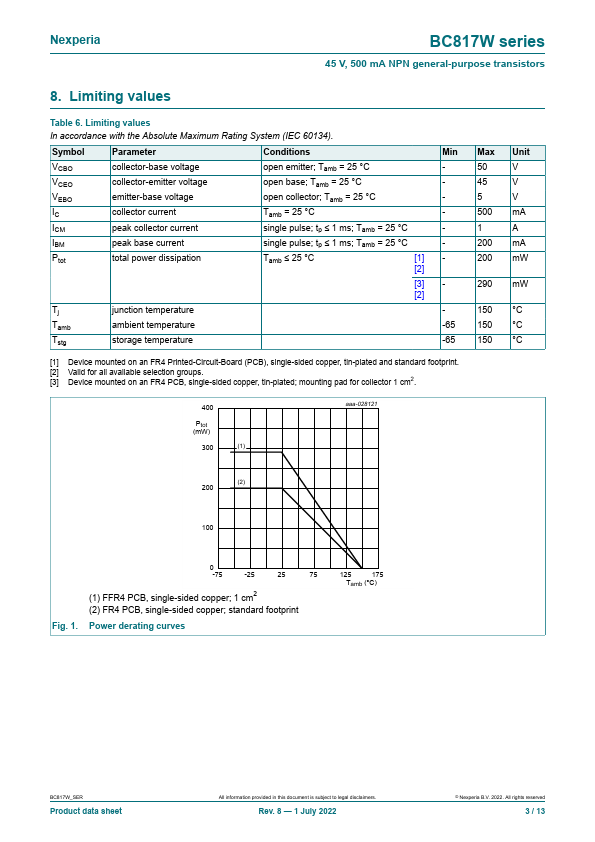

BC817W series 45 V, 500 mA NPN general-purpose transistors Rev. 7 — 11 June 2018 Product data sheet 1 Product profile 1.1 General description NPN general-purpose transistors in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. Table 1. Product overview Type number Package Nexperia BC817W SOT323 BC817-16W BC817-25W BC817-40W JEDEC - JEITA SC-70 PNP complement BC807W BC807-16W BC807-25W BC807-40W 1.2 Features and benefits • High current • Three current gain selections • AEC-Q101 qualified 1.3 Applications • General-purpose switching and amplification Nexperia BC817W series 45 V, 500 mA NPN general-purpose transistors 1.4 Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified.
