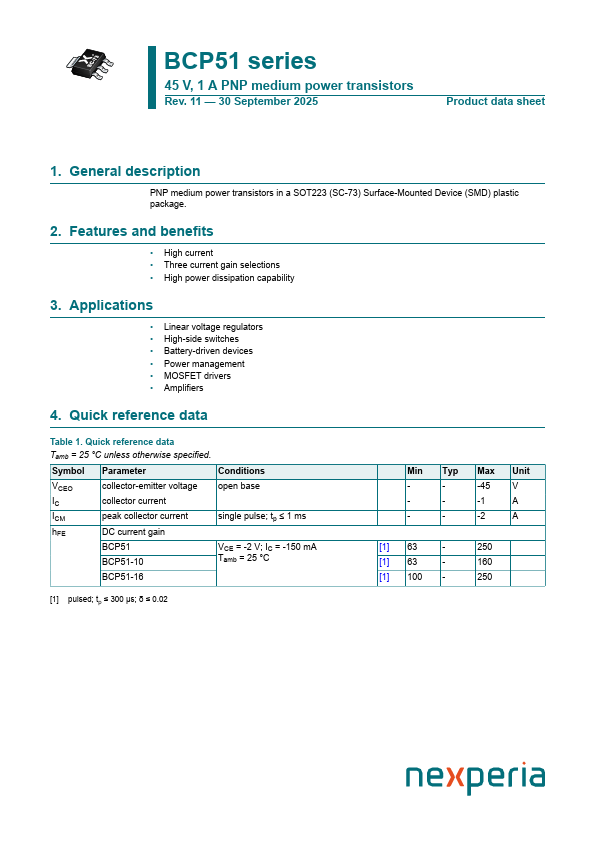

BCP51-16
description
PNP medium power transistors in a SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High current
- Three current gain selections
- High power dissipation capability
3. Applications
- Linear voltage regulators
- High-side switches
- Battery-driven devices
- Power management
- MOSFET drivers
- Amplifiers
4. Quick reference data
Table 1. Quick reference data Tamb = 25 °C unless otherwise specified.
Symbol Parameter
Conditions
VCEO collector-emitter voltage open base
IC collector current
ICM peak collector current single pulse; tp ≤ 1 ms h FE
DC current gain
BCP51 BCP51-10
VCE = -2 V; IC = -150 m A Tamb = 25 °C
[1] pulsed; tp ≤ 300 μs; δ ≤ 0.02
Min Typ Max Unit
- -
-45 V
- -
-1
- -
-2
[1] 63
- 250
[1] 63
- 160
[1] 100
-...
