BCP68-25
description

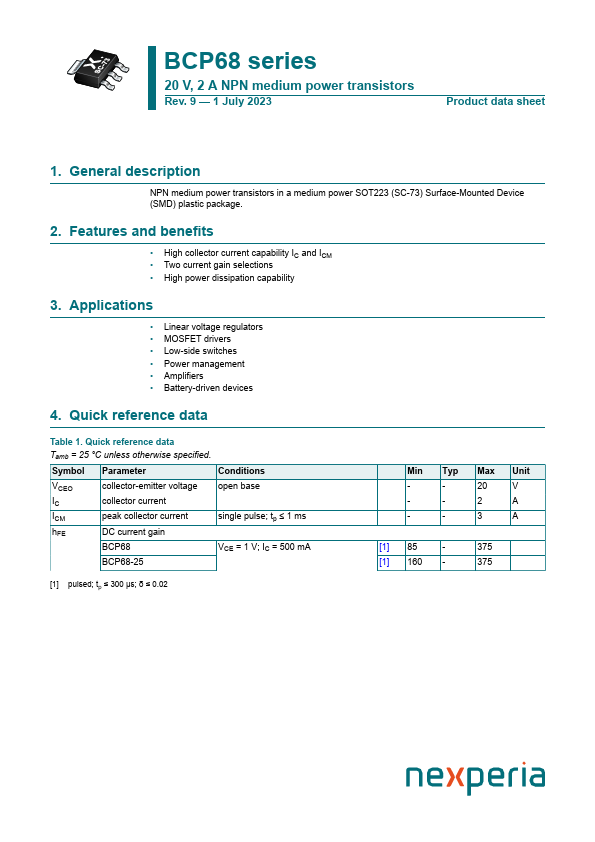

NPN medium power transistors in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High collector current capability IC and ICM
- Two current gain selections
- High power dissipation capability
3. Applications
- Linear voltage regulators
- MOSFET drivers
- Low-side switches
- Power management
- Amplifiers
- Battery-driven devices
4. Quick reference data
Table 1. Quick reference data Tamb = 25 °C unless otherwise specified.
Symbol Parameter
Conditions
VCEO collector-emitter voltage open base
IC collector current
ICM peak collector current single pulse; tp ≤ 1 ms h FE
DC current gain
BCP68
VCE = 1 V; IC = 500 m A
[1] pulsed; tp ≤ 300 μs; δ ≤ 0.02
Min Typ Max Unit
- -
- -
- -
[1] 85
- 375
[1] 160
- 375
Nexperia

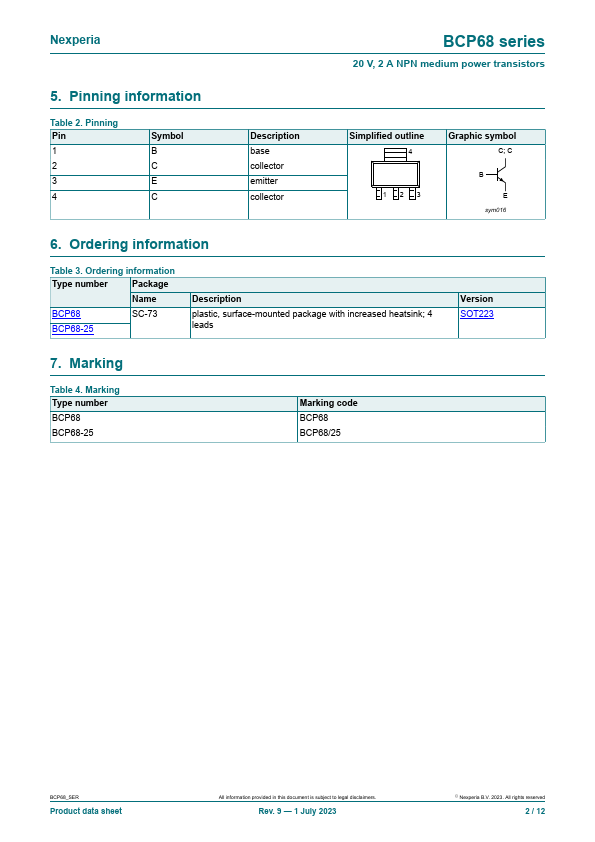

5. Pinning information
Table 2. Pinning Pin 1 2 3 4
Symbol B C E C
Description base collector emitter...
