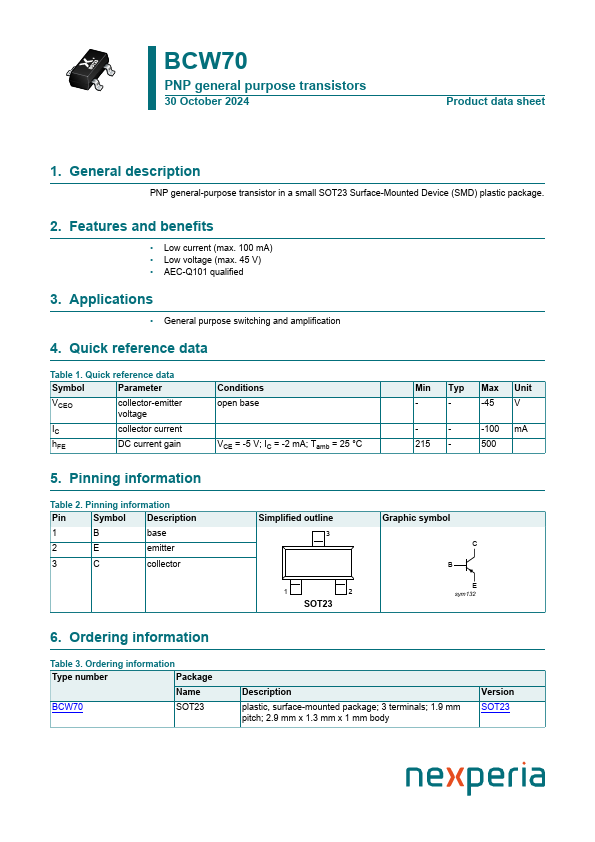

Datasheet Summary
PNP general purpose transistors
30 October 2024
Product data sheet
1. General description
PNP general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low current (max. 100 mA)
- Low voltage (max. 45 V)
- AEC-Q101 qualified
3. Applications
- General purpose switching and amplification
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current hFE
DC current gain
Conditions open base
VCE = -5 V; IC = -2 mA; Tamb = 25 °C
Min Typ Max Unit
- -
-45 V
- -
- -100 mA 500
5. Pinning information
Table 2. Pinning information
Pin
Symbol...
