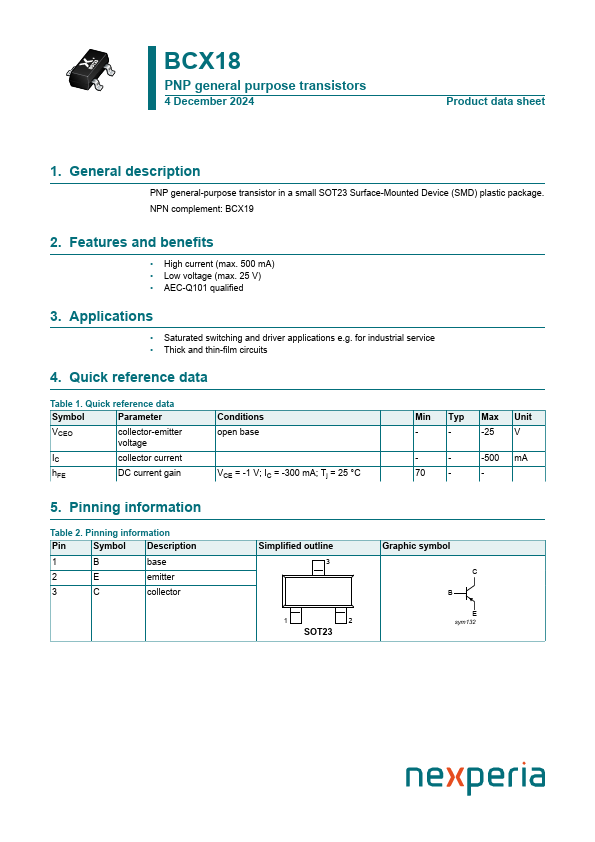

Nexperia BCX18
PNP general purpose transistors
| Part No. | BCX18 |
|---|---|
| Datasheet | BCX18 Download |
| Manufacturer |  Nexperia |
| Description | PNP general purpose transistors |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● High current (max. 500 mA)● Low voltage (max. 25 V)
● AEC-Q101 qualified 3.
APPLICATIONS
● Saturated switching and driver applications e.g. for industrial service● Thick and thin-film circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -1 V; IC = -300 mA; Tj = 25 °C Min Typ Max Unit - - -25 V - - 70 - -500 mA - 5. Pinning information Table 2. Pinning information Pin Symbol
DESCRIPTION
1 B base 2 E emitter 3 C collector Simplified outline 3 1 2 SOT23 Graphic symbol C B E sym132 Nexperia BCX18 PNP general purpose transistors 6. Ordering information Table 3. Ordering information Type number Package Name BCX18 SOT23DESCRIPTION

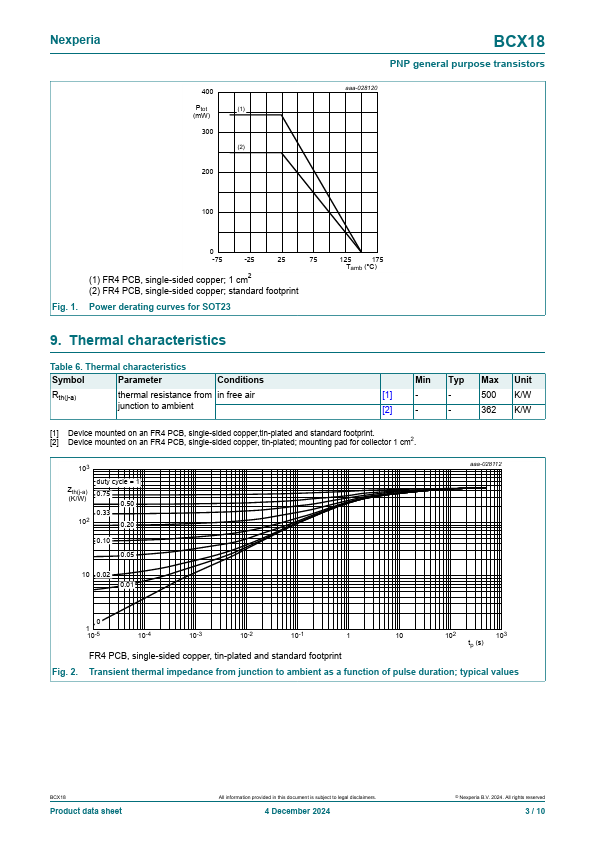

plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body Version SOT23 7. Marking Table 4. Marking codes Type number BCX18 [1] % = placeholder for manufacturing site code Marking code[1] T2% 8.
