BCX51-10
description

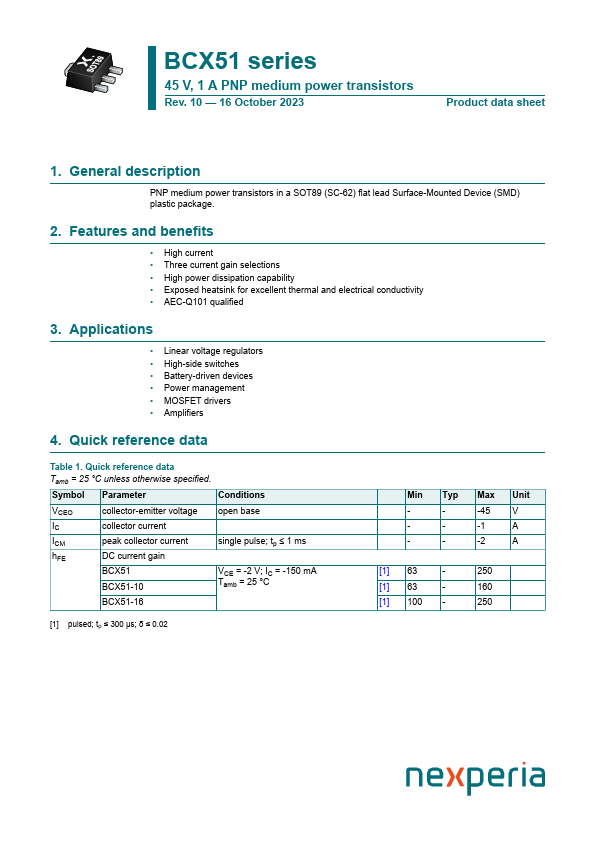

PNP medium power transistors in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High current
- Three current gain selections
- High power dissipation capability
- Exposed heatsink for excellent thermal and electrical conductivity
- AEC-Q101 qualified
3. Applications
- Linear voltage regulators
- High-side switches
- Battery-driven devices
- Power management
- MOSFET drivers
- Amplifiers
4. Quick reference data
Table 1. Quick reference data Tamb = 25 °C unless otherwise specified.
Symbol Parameter
Conditions
VCEO collector-emitter voltage open base
IC collector current
ICM peak collector current single pulse; tp ≤ 1 ms h FE
DC current gain
BCX51 BCX51-10
VCE = -2 V; IC = -150 m A Tamb = 25 °C
BCX51-16
[1] pulsed; tp ≤ 300 μs; δ ≤ 0.02
Min Typ Max Unit
- -
-45 V
- -
-1
- -
-2
[1] 63
- 250
[1] 63
-...
