BCX53 - 1A PNP medium power transistors

Nexperia

General Description

PNP medium power transistor series in Surface-Mounted Device (SMD) plastic packages.

Table 1.

[1] Valid for all available selection groups.

Key Features

High current.
Three current gain selections.
High power dissipation capability.
Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061).
Leadless very small SMD plastic package with medium power capability (SOT1061).
AEC-Q101 qualified 1.3.

📥 Download Datasheet

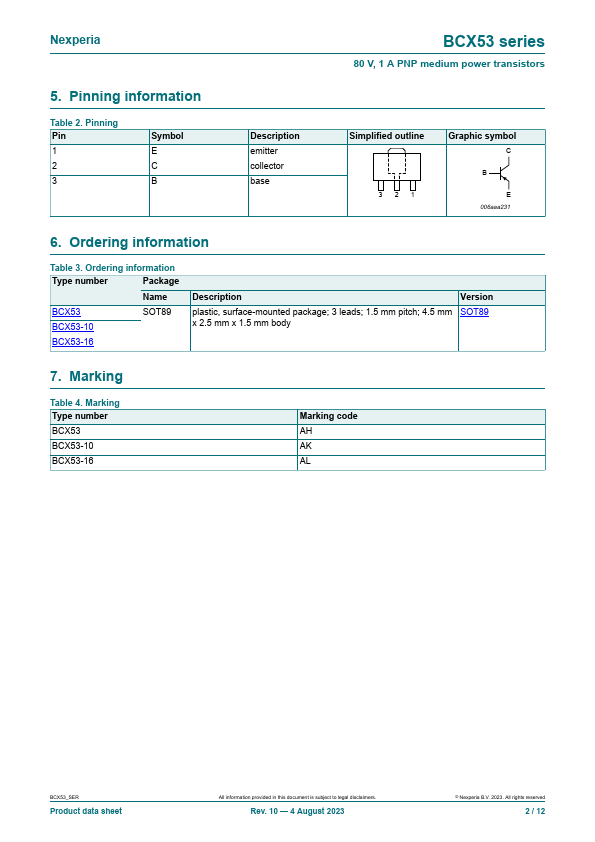

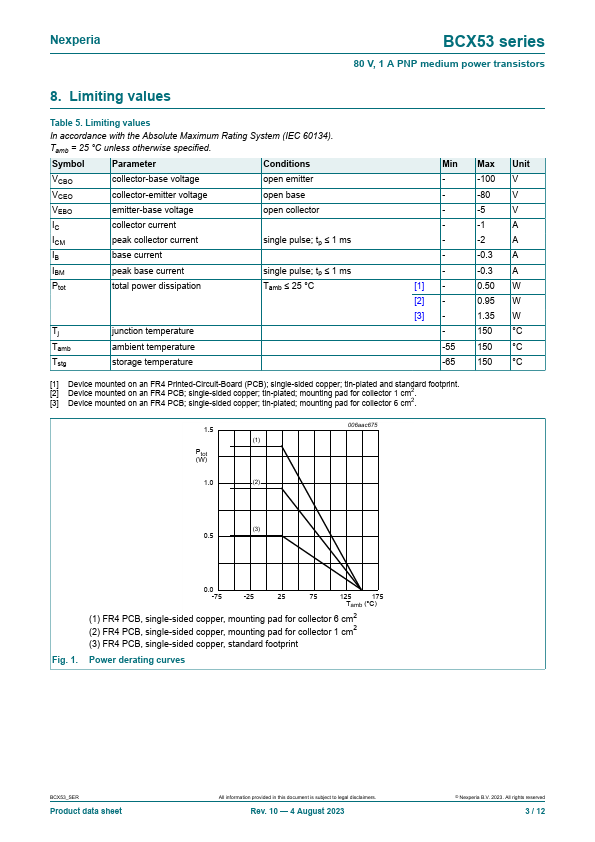

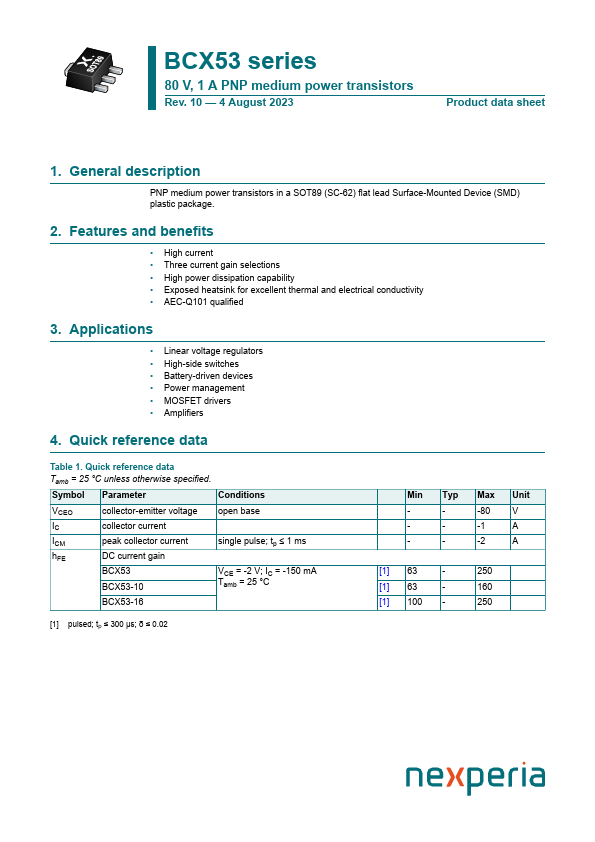

BCX53 1a pnp medium power transistors by Nexperia - Datasheet Preview

Datasheet Details

Part number	BCX53
Manufacturer	Nexperia
File Size	1.65 MB
Description	1A PNP medium power transistors
Datasheet	BCX53 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BCX53	PNP Medium Power Transistor	Multicomp
BCX53	PNP Silicon AF Transistors	Bruckewell
BCX53	PNP medium power transistors	NXP
BCX53	SURFACE MOUNT PNP SILICON TRANSISTOR	Central Semiconductor Corp
BCX53	PNP Silicon AF Transistors	Infineon Technologies AG

Other Datasheets by Nexperia

Part Number	Description
BCX51	1A PNP medium power transistors
BCX51-10T	1A PNP transistors
BCX51-16T	1A PNP transistors
BCX51T	1A PNP transistors
BCX52	1A PNP medium power transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

BCP53; BCX53; BC53PA 80 V, 1 A PNP medium power transistors Rev. 9 — 19 October 2011 Product data sheet 1. Product profile 1.1 General description PNP medium power transistor series in Surface-Mounted Device (SMD) plastic packages. Table 1. Product overview Type number[1] Package Nexperia BCP53 SOT223 BCX53 SOT89 BC53PA SOT1061 JEITA SC-73 SC-62 - [1] Valid for all available selection groups. JEDEC TO-243 - NPN complement BCP56 BCX56 BC56PA 1.2 Features and benefits  High current  Three current gain selections  High power dissipation capability  Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061)  Leadless very small SMD plastic package with medium power capability (SOT1061)  AEC-Q101 qualified 1.
