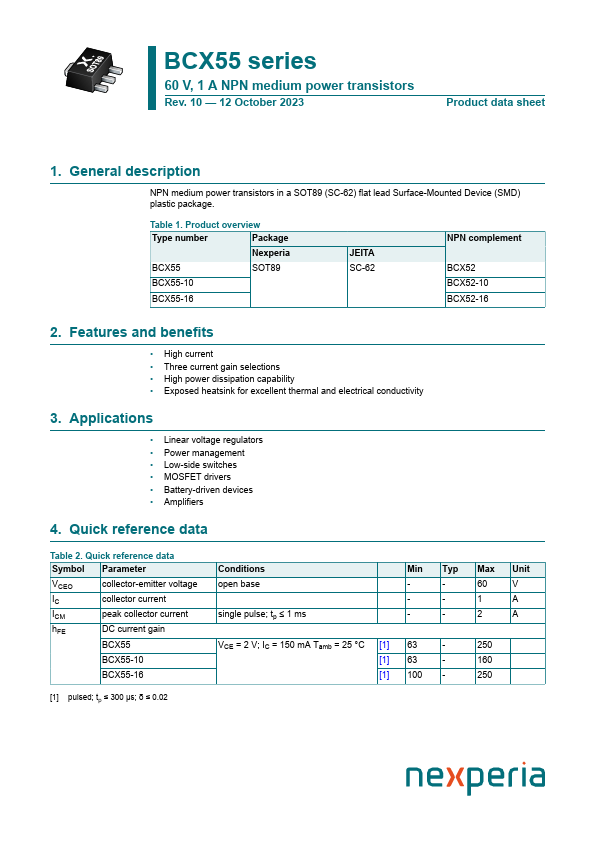

BCX55-16
description
NPN medium power transistors in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview
Type number
Package
Nexperia
BCX55
SOT89
BCX55-10
JEITA SC-62
NPN plement
BCX52 BCX52-10 BCX52-16
2. Features and benefits
- High current
- Three current gain selections
- High power dissipation capability
- Exposed heatsink for excellent thermal and electrical conductivity
3. Applications
- Linear voltage regulators
- Power management
- Low-side switches
- MOSFET drivers
- Battery-driven devices
- Amplifiers
4. Quick reference data
Table 2. Quick reference data Symbol Parameter
VCEO collector-emitter voltage
IC collector current
ICM peak collector current h FE
DC current gain
BCX55
BCX55-10
[1] pulsed; tp ≤ 300 μs; δ ≤ 0.02
Conditions
Min open base
- - single pulse; tp ≤ 1 ms
- VCE = 2 V; IC = 150 m A Tamb = 25 °C [1] 63 [1] 63 [1] 100
Typ Max Unit
-...
