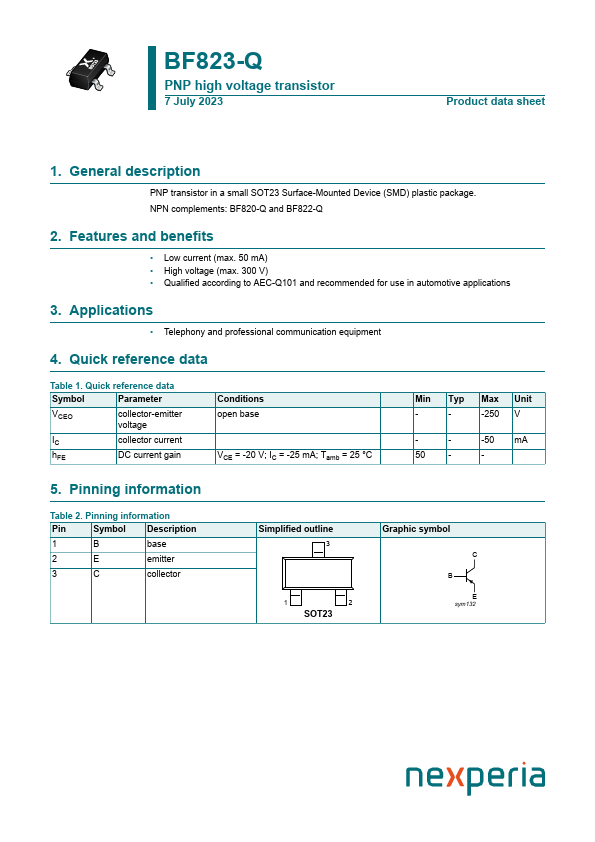

BF823-Q
BF823-Q is PNP high voltage transistor manufactured by Nexperia.
PNP high voltage transistor
7 July 2023
Product data sheet
1. General description
PNP transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. NPN plements: BF820-Q and BF822-Q
2. Features and benefits
- Low current (max. 50 m A)
- High voltage (max. 300 V)
- Qualified according to AEC-Q101 and remended for use in automotive applications
3. Applications
- Telephony and professional munication equipment
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current h FE
DC current gain
Conditions open base
VCE = -20 V; IC = -25 m A; Tamb = 25 °C
Min Typ Max Unit
- -
-250 V
- -
- -50 m A
- 5. Pinning information
Table 2. Pinning information
Pin
Symbol Description

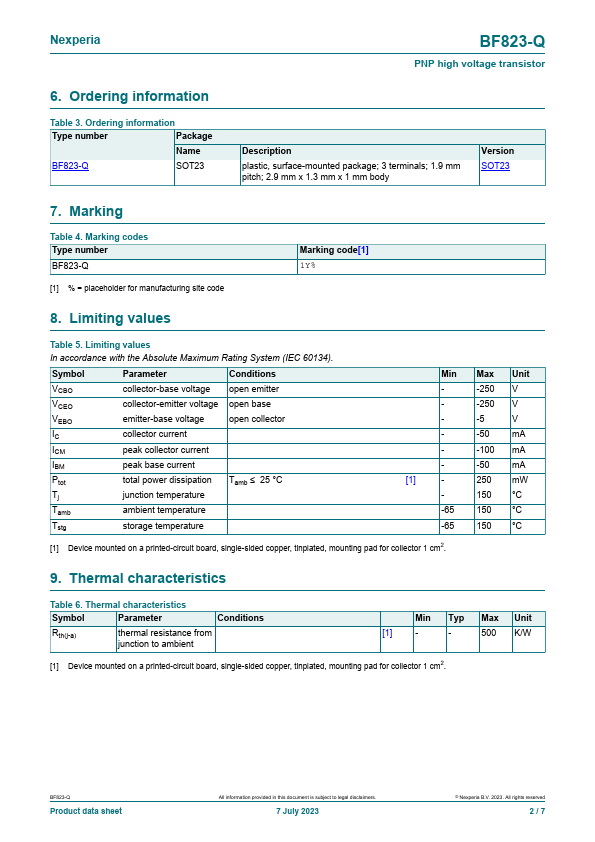

B...
