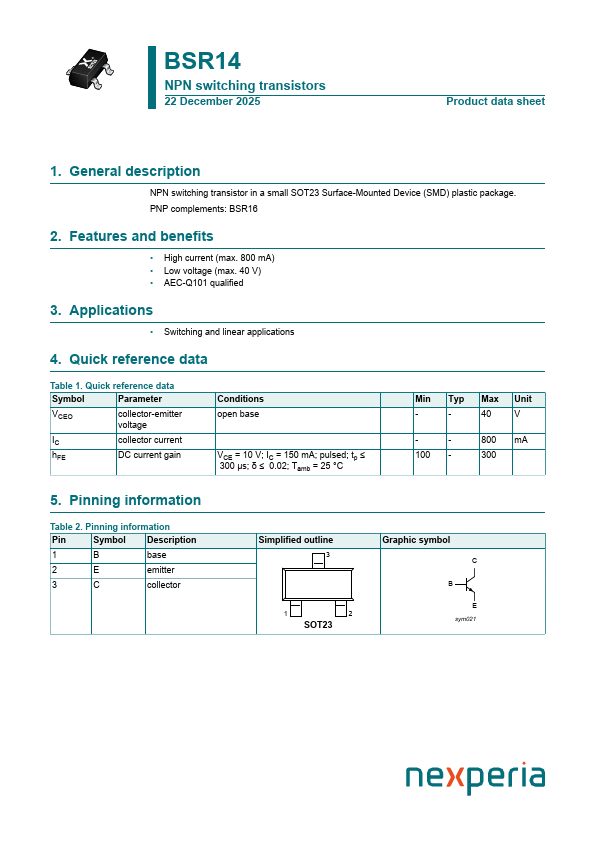

BSR14
description
NPN switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. PNP plements: BSR16
2. Features and benefits
- High current (max. 800 m A)
- Low voltage (max. 40 V)
- AEC-Q101 qualified
3. Applications
- Switching and linear applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current h FE
DC current gain
Conditions open base
VCE = 10 V; IC = 150 m A; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
Min Typ Max Unit
- -
- -
- 800 m A 300
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
B base
E emitter
C collector
Simplified outline
SOT23
Graphic...
