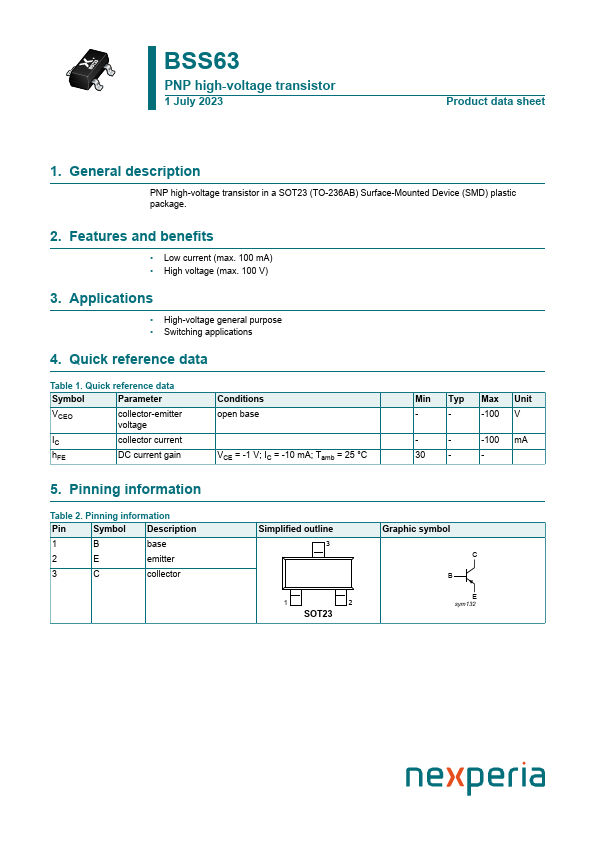

BSS63
description
PNP high-voltage transistor in a SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low current (max. 100 m A)
- High voltage (max. 100 V)
3. Applications
- High-voltage general purpose
- Switching applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current h FE
DC current gain
Conditions open base
VCE = -1 V; IC = -10 m A; Tamb = 25 °C
Min Typ Max Unit
- -
-100 V
- -
- -100 m A
- 5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
B base
E emitter
C collector
Simplified outline
SOT23
Graphic...
