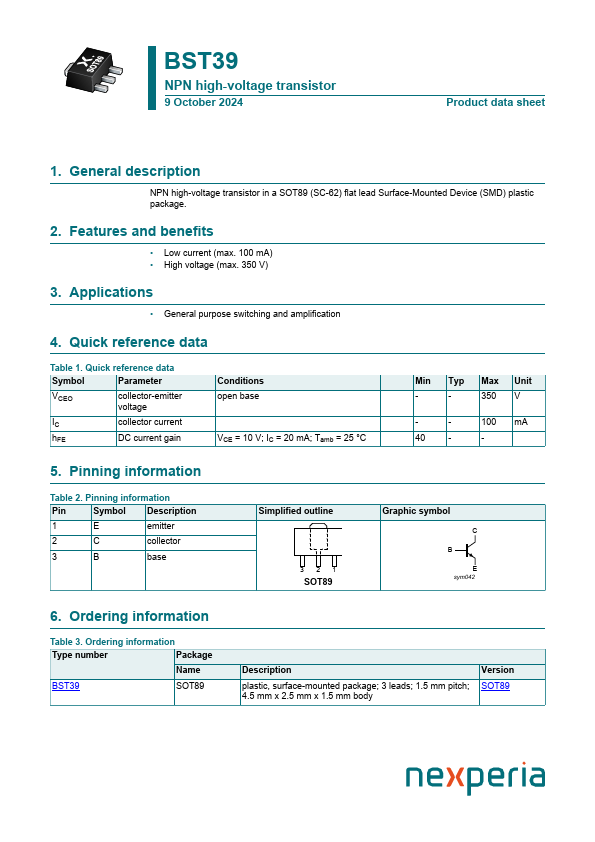

BST39
BST39 is manufactured by Nexperia.
NPN high-voltage transistor
9 October 2024
Product data sheet
1. General description
NPN high-voltage transistor in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low current (max. 100 mA)
- High voltage (max. 350 V)
3. Applications
- General purpose switching and amplification
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current hFE
DC current gain
Conditions open base
VCE = 10 V; IC = 20 mA; Tamb = 25 °C
Min Typ Max Unit
- -
350 V
- -
- 100 mA
- 5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
E...
