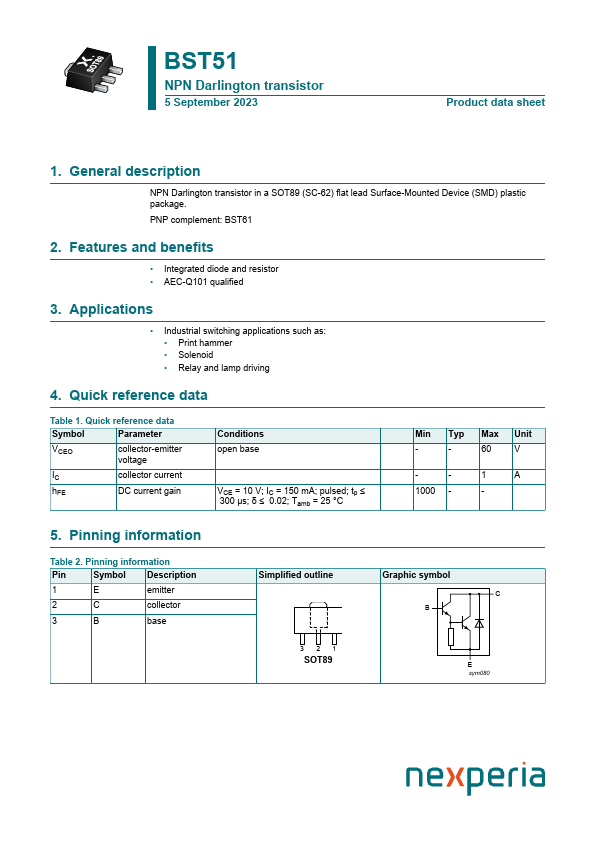

Nexperia BST51
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.| Part No. | BST51 |
|---|---|
| Datasheet | BST51 Download |
| Manufacturer |  Nexperia |
| Description | NPN Darlington transistor |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Integrated diode and resistor● AEC-Q101 qualified 3.
APPLICATIONS
● Industrial switching applications such as:● Print hammer
● Solenoid
● Relay and lamp driving 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 10 V; IC = 150 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C Min Typ Max Unit - - 60 V - - 1 A 1000 - - 5. Pinning information Table 2. Pinning information Pin Symbol
DESCRIPTION

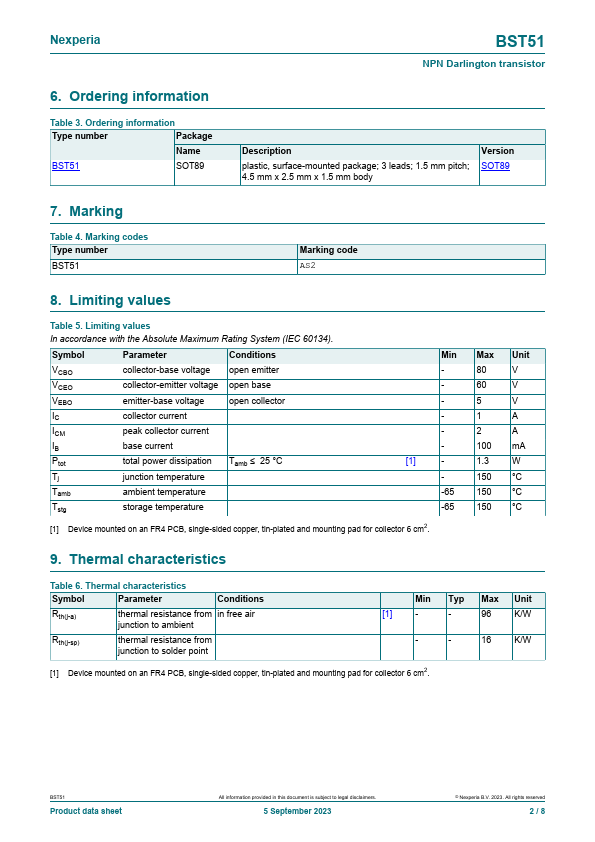

1 E emitter 2 C collector 3 B base Simplified outline Graphic symbol C B 321 SOT89 E sym080 Nexperia BST51 NPN Darlington transistor 6. Ordering information Table 3. Ordering information Type number Package Name BST51 SOT89DESCRIPTION
plastic, surface-mounted package; 3 leads; 1.5 mm pitch; 4.5 mm x 2.5 mm x 1.5 mm body Version SOT89 7. Marking Table 4. Marking codes Type number BST51 Marking code AS2 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134).
