Nexperia MBR140ESF
The marking bar indicates the cathode.| Part No. | MBR140ESF |
|---|---|
| Datasheet | MBR140ESF Download |
| Manufacturer |  Nexperia |
| Description | High temperature 40V 1A low VF Schottky barrier rectifier |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Average forward current: IF(AV) ≤ 1 A● Reverse voltage: VR ≤ 40 V
● Low forward voltage
● High power capability due to clip-bonding technology
● Small and flat lead SMD plastic package
● High temperature Tj ≤ 175 °C 3.
APPLICATIONS
● Low voltage rectification● High efficiency DC-to-DC conversion
● Switch mode power supply

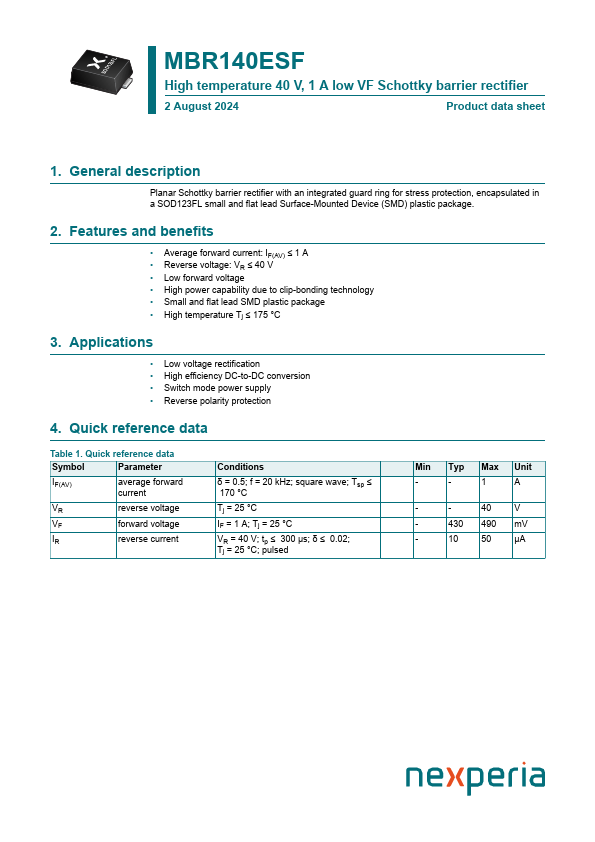

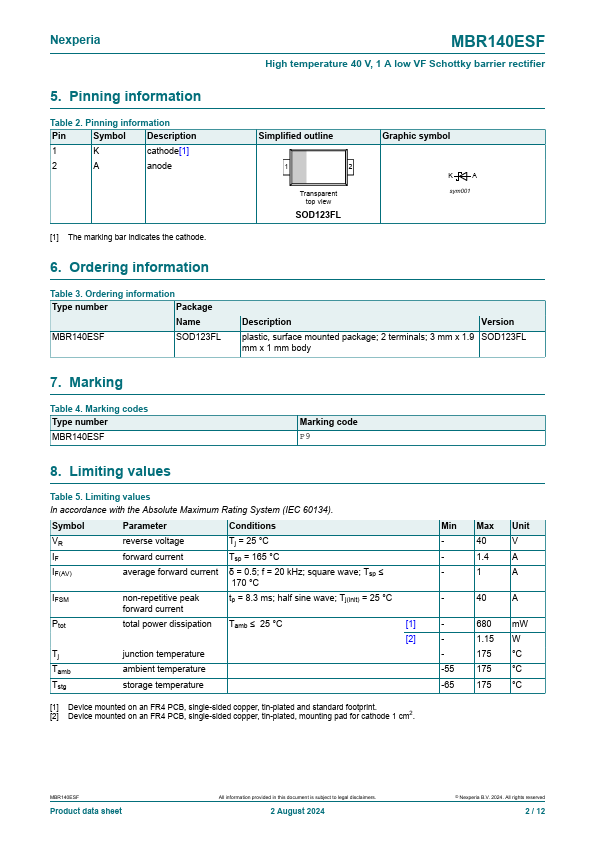

● Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average forward current VR reverse voltage VF forward voltage IR reverse current Conditions δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 170 °C Tj = 25 °C IF = 1 A; Tj = 25 °C VR = 40 V; tp ≤ 300 µs; δ ≤ 0.02; Tj = 25 °C; pulsed Min Typ Max Unit - - 1 A - - 40 V - 430 490 mV - 10 50 µA Nexperia MBR140ESF High temperature 40 V, 1 A low VF Schottky barrier rectifier 5. Pinning information Table 2. Pinning information Pin Symbol
DESCRIPTION
1 K cathode[1] 2 A anode [1] The marking bar indicates the cathode. Simplified outline 1 2 Transparent top view SOD123FL Graphic symbol K A sym001 6.
