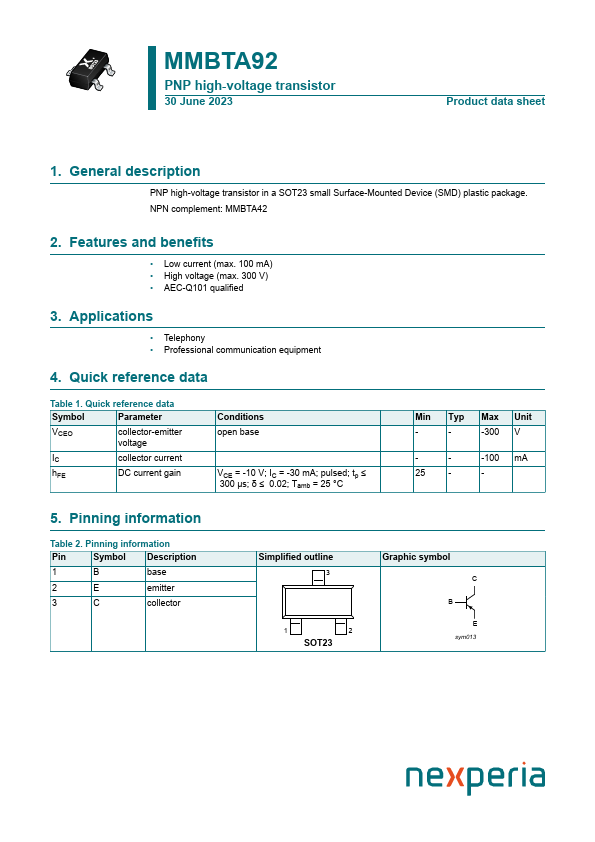

MMBTA92
MMBTA92 is PNP high-voltage transistor manufactured by Nexperia.
description
PNP high-voltage transistor in a SOT23 small Surface-Mounted Device (SMD) plastic package. NPN plement: MMBTA42
2. Features and benefits
- Low current (max. 100 m A)
- High voltage (max. 300 V)
- AEC-Q101 qualified
3. Applications
- Telephony
- Professional munication equipment
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current h FE
DC current gain
Conditions open base
VCE = -10 V; IC = -30 m A; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
Min Typ Max Unit
- -
-300 V
- -
- -100 m A
- 5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
B base
E emitter
C collector
Simplified outline
SOT23
Graphic...
