PESD3V3L2BT Datasheet

PESD3V3L2BT is Low capacitance double bidirectional ESD protection diode manufactured by Nexperia.

Part: PESD3V3L2BT
Manufacturer: Nexperia
Size: 226.01 KB

Download PESD3V3L2BT Datasheet PDF

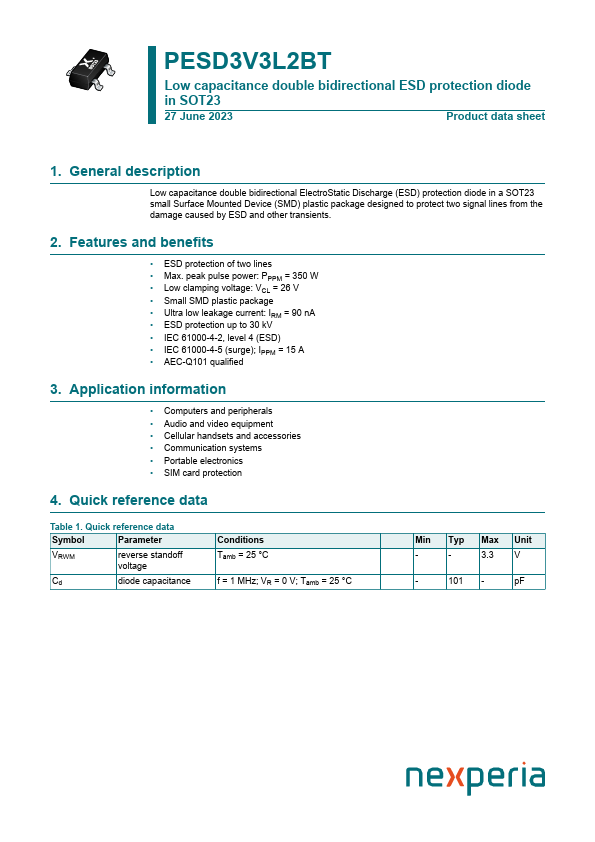

PESD3V3L2BT datasheet preview

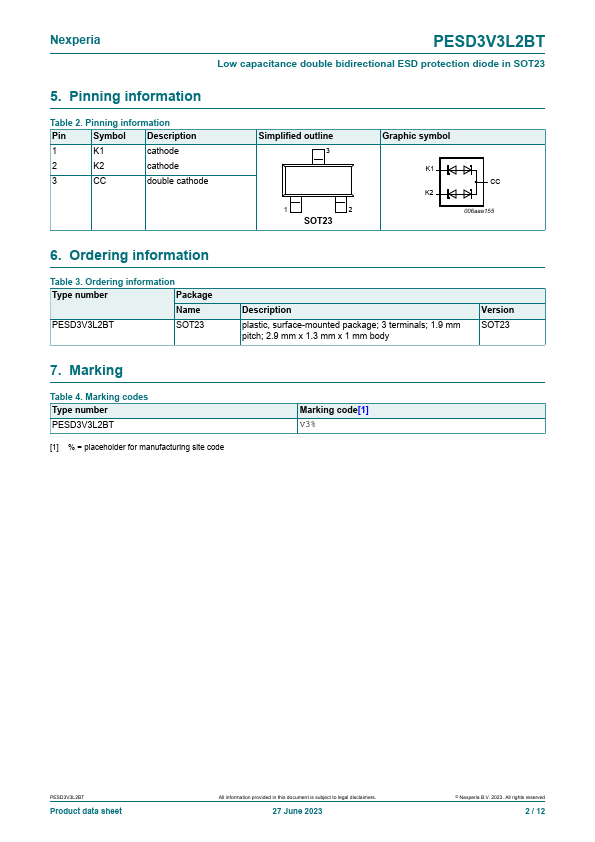

PESD3V3L2BT page 2 — Page 2

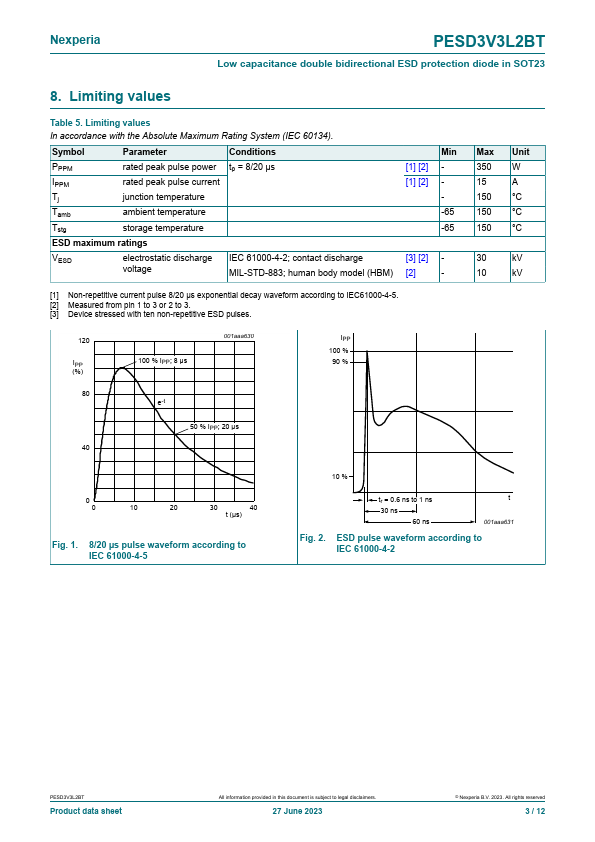

PESD3V3L2BT page 3 — Page 3

PESD3V3L2BT Key Features

ESD protection of two lines
Max. peak pulse power: PPPM = 350 W
Low clamping voltage: VCL = 26 V
Small SMD plastic package
Ultra low leakage current: IRM = 90 nA
ESD protection up to 30 kV
IEC 61000-4-2, level 4 (ESD)
IEC 61000-4-5 (surge); IPPM = 15 A
AEC-Q101 qualified
puters and peripherals

Other PESD3V3L2BT Datasheets

Manufacturer	Part Number	Description
NXP Semiconductors	PESD3V3L2BT	Low capacitance double bidirectional ESD protection diodes
EVVO	PESD3V3L2BT	ESD protection diodes
UMW UMW	PESD3V3L2BT	ESD protection diodes
Kexin Semiconductor	PESD3V3L2BT	ESD Protection Diodes
NXP Semiconductors	PESD3V3L2UM	Low capacitance double ESD protection diode

View all PESD3V3L2BT datasheets →

PESD3V3L2BT Description

Low capacitance double bidirectional ElectroStatic Discharge (ESD) protection diode in a SOT23 small Surface Mounted Device (SMD) plastic package designed to protect two signal lines from the damage caused by ESD and other transients.
