ISD15108FYI Overview
Key Specifications
Package: LQFP
Mount Type: Surface Mount
Pins: 48
Max Operating Temp: 85 °C
Description

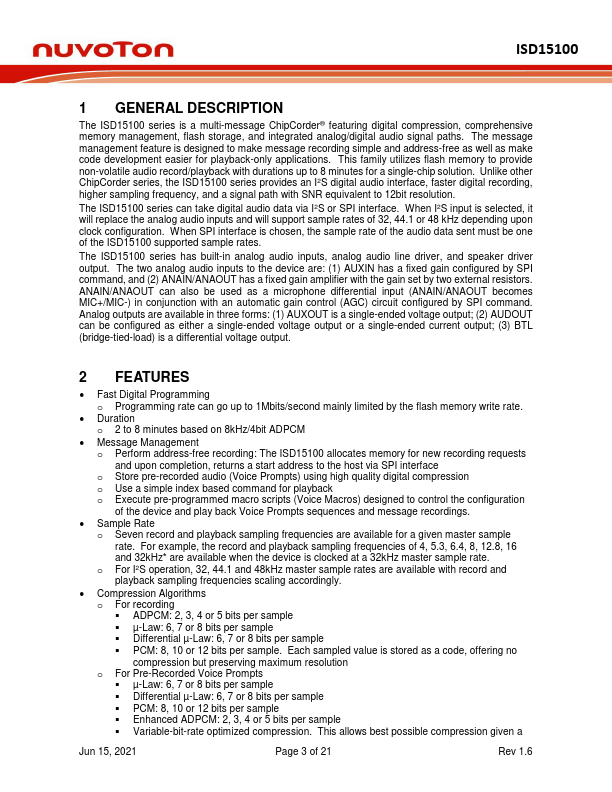

The ISD15100 series is a multi-message ChipCorder® featuring digital compression, comprehensive memory management, flash storage, and integrated analog/digital audio signal paths. The message management feature is designed to make message recording simple and address-free as well as make code development easier for playback-only applications.
Key Features
- is designed to make message recording simple and address-free as well as make code development easier for playback-only applications
- This family utilizes flash memory to provide non-volatile audio record/playback with durations up to 8 minutes for a single-chip solution
- The ISD15100 series can take digital audio data via I2S or SPI interface
- When SPI interface is chosen, the sample rate of the audio data sent must be one of the ISD15100 supported sample rates
- The ISD15100 series has built-in analog audio inputs, analog audio line driver, and speaker driver output
