ISD1616B Overview

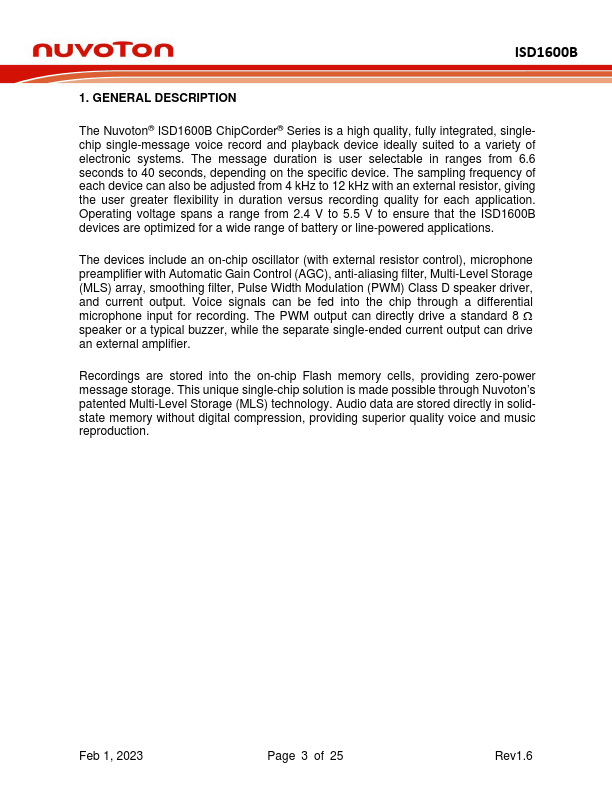

The Nuvoton® ISD1600B ChipCorder® Series is a high quality, fully integrated, singlechip single-message voice record and playback device ideally suited to a variety of electronic systems. The message duration is user selectable in ranges from 6.6 seconds to 40 seconds, depending on the specific device. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving...

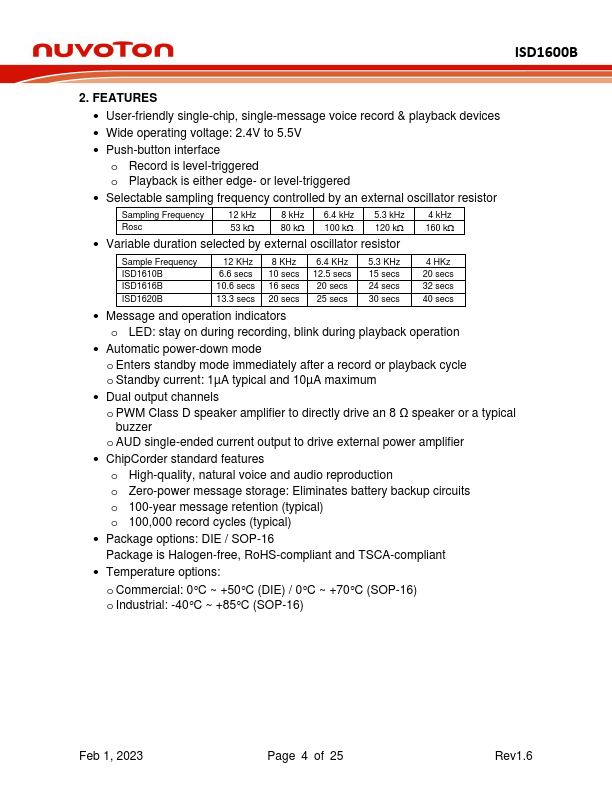

ISD1616B Key Features
- User-friendly single-chip, single-message voice record & playback devices
- Wide operating voltage: 2.4V to 5.5V
- Push-button interface
- Selectable sampling frequency controlled by an external oscillator resistor
- Variable duration selected by external oscillator resistor
- Message and operation indicators
