- Part: ISD2360
- Description: Digital ChipCorder
- Manufacturer: Nuvoton Technology
- Size: 724.18 KB
Page 2
Page 3

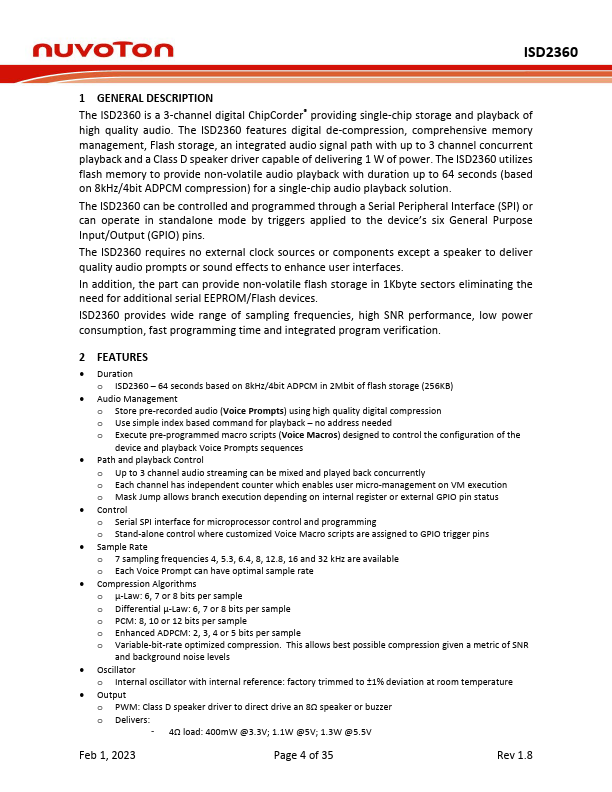

ISD2360 Key Features
- Duration o ISD2360
- 64 seconds based on 8kHz/4bit ADPCM in 2Mbit of flash storage (256KB)
- Audio Management o Store pre-recorded audio (Voice Prompts) using high quality digital pression o Use simple index based
- no address needed o Execute pre-programmed macro scripts (Voice Macros) designed to control the configuration of the dev
- Path and playback Control o Up to 3 channel audio streaming can be mixed and played back concurrently o Each channel has
- Control o Serial SPI interface for microprocessor control and programming o Stand-alone control where customized Voice M
- Sample Rate o 7 sampling frequencies 4, 5.3, 6.4, 8, 12.8, 16 and 32 kHz are available o Each Voice Prompt can have opti
