M031SG8AE Overview
Key Specifications
Package: LFQFP
Operating Voltage: 2.5 V
Max Voltage (typical range): 3.6 V
Min Voltage (typical range): 2 V
Description

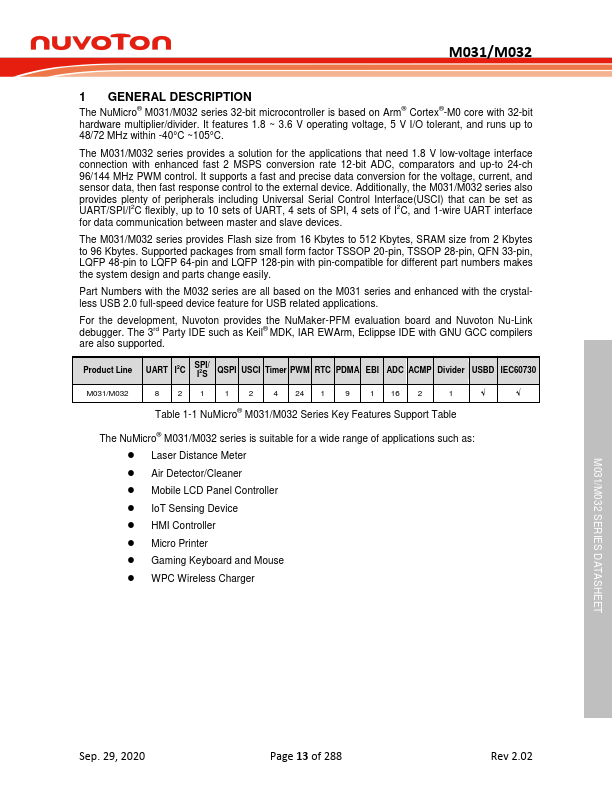

The NuMicro® M031/M032 series 32-bit microcontroller is based on Arm® Cortex® -M0 core with 32-bit hardware multiplier/divider. It features 1.8 ~ 3.6 V operating voltage, 5 V I/O tolerant, and runs up to 48/72 MHz within -40°C ~105°C.

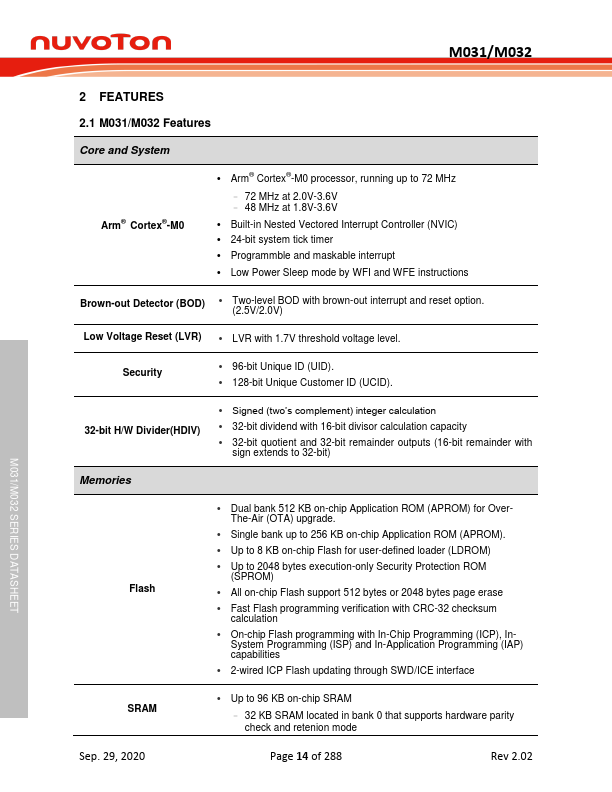

Key Features
- 1.8 ~ 3.6 V operating voltage, 5 V I/O tolerant, and runs up to 48/72 MHz within -40°C ~105°C
- It supports a fast and precise data conversion for the voltage, current, and sensor data, then fast response control to the external device
- The M031/M032 series provides Flash size from 16 Kbytes to 512 Kbytes, SRAM size from 2 Kbytes to 96 Kbytes
- Part Numbers with the M032 series are all based on th
