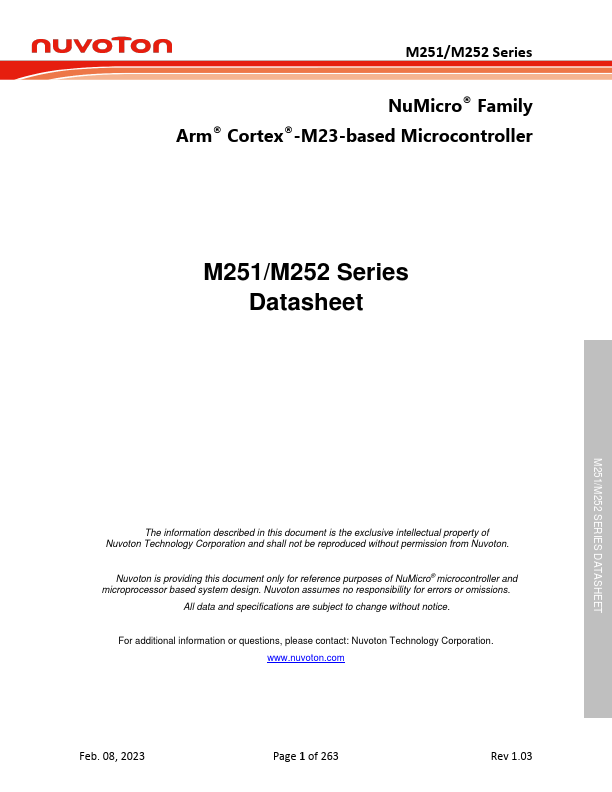

M251LD2AE datasheet by Nuvoton Technology.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | M251LD2AE |
|---|---|
| Datasheet | M251LD2AE M251FC2AE Datasheet (PDF) |
| File Size | 3.39 MB |
| Manufacturer | Nuvoton Technology |
| Description | Microcontroller |
|
|

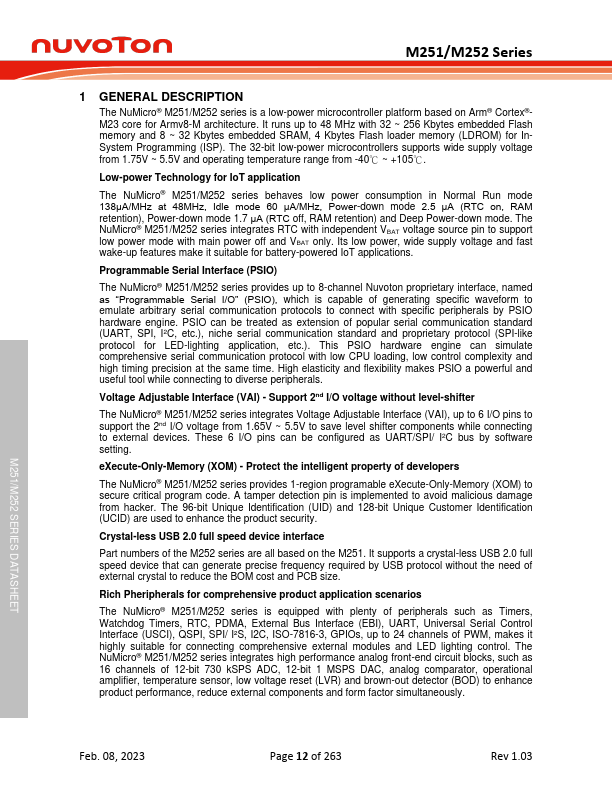

The NuMicro® M251/M252 series is a low-power microcontroller platform based on Arm® Cortex® M23 core for Armv8-M architecture. It runs up to 48 MHz with 32 ~ 256 Kbytes embedded Flash memory and 8 ~ 32 Kbytes embedded SRAM, 4 Kbytes Flash loader memory (LDROM) for InSystem Programming (ISP). The 32-bit low-power microcontrollers supports wide supply voltage from 1.75V ~ 5.5V and operating temperature range from -40℃...
View all Nuvoton Technology datasheets
| Part Number | Description |
|---|---|
| M251LC2AE | Microcontroller |
| M251LE3AE | Microcontroller |
| M251LG6AE | Microcontroller |
| M251EC2AE | Microcontroller |
| M251FC2AE | Microcontroller |
| M251KE3AE | Microcontroller |
| M251KG6AE | Microcontroller |
| M251SC2AE | Microcontroller |
| M251SD2AE | Microcontroller |
| M251SE3AE | Microcontroller |
