Nuvoton Technology M487JIDAE
The M480 series consists of six sub-series according to characteristics and applications. The M480 series supports Flash size up to 2560 KB and SRAM size up to 160 KB. The operating frequency is up to 192 MHz with 175/130 µA/ MHz dynamic power consumption and the standby current can be lower to 1 µA.| Part No. | M487JIDAE |
|---|---|
| Datasheet | M487JIDAE Download |
| Manufacturer |  Nuvoton Technology |
| Description | Microcontroller |
| Buy | Stock & Price |

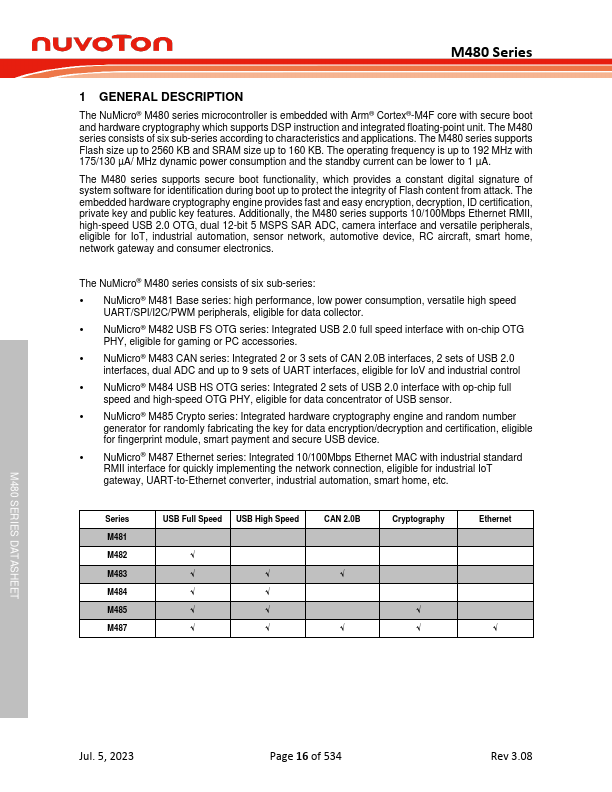

GENERAL DESCRIPTION
The NuMicro® M480 series microcontroller is embedded with Arm® Cortex® -M4F core with secure boot and hardware cryptography which supports DSP instruction and integrated floating-point unit. The M480 series supports secure boot functionality, which provides a constant digital signature of system software for identification during boot up to protect the integrity of Flash content from attack. The embedded hardware cryptography engine provides fast and easy encryption, decryption, ID certification, private key and public key features. Additionally, the M480 series supports 10/100Mbps Ethernet RMII, high-speed USB 2.0 OTG, dual 12-bit 5 MSPS SAR ADC, camera interface and versatile peripherals, eligible for IoT, industrial automation, sensor network, automotive device, RC aircraft, smart home, network gateway and consumer electronics. The NuMicro® M480 series consists of six sub-series:● NuMicro® M481 Base series: high performance, low power consumption, versatile high speed UART/SPI/I2C/PWM peripherals, eligible for data collector.
