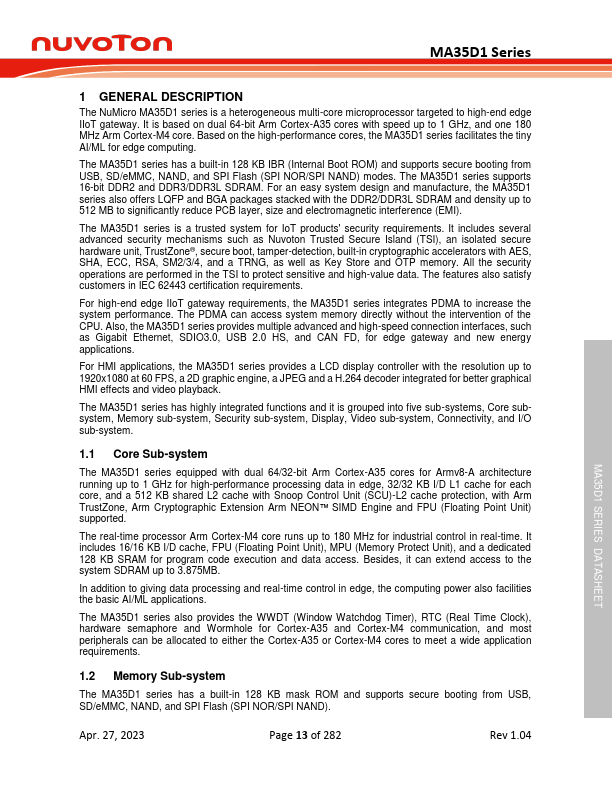

GENERAL DESCRIPTION
The NuMicro MA35D1 series is a heterogeneous multi-core microprocessor targeted to high-end edge IIoT gateway. It is based on dual 64-bit Arm Cortex-A35 cores with speed up to 1 GHz, and one 180 MHz Arm Cortex-M4 core. Based on the high-performance cores, For an easy system design and manufacture, the MA35D1 series also offers LQFP and BGA packages stacked with the DDR2/DDR3L SDRAM and density up to 512 MB to significantly reduce PCB layer, size and electromagnetic interference (EMI). The MA35D1 series is a trusted system for IoT products' security requirements. It includes several advanced security mechanisms such as Nuvoton Trusted Secure Island (TSI), an isolated secure hardware unit, TrustZone® , secure boot, tamper-detection, built-in cryptographic accelerators with AES, SHA, ECC, RSA, SM2/3/4, and a TRNG, as well as Key Store and OTP memory. All the security operations are performed in the TSI to protect sensitive and high-value data. The features also satisfy customers in IEC 62443 certification requirements.
