N32901U1DN Overview

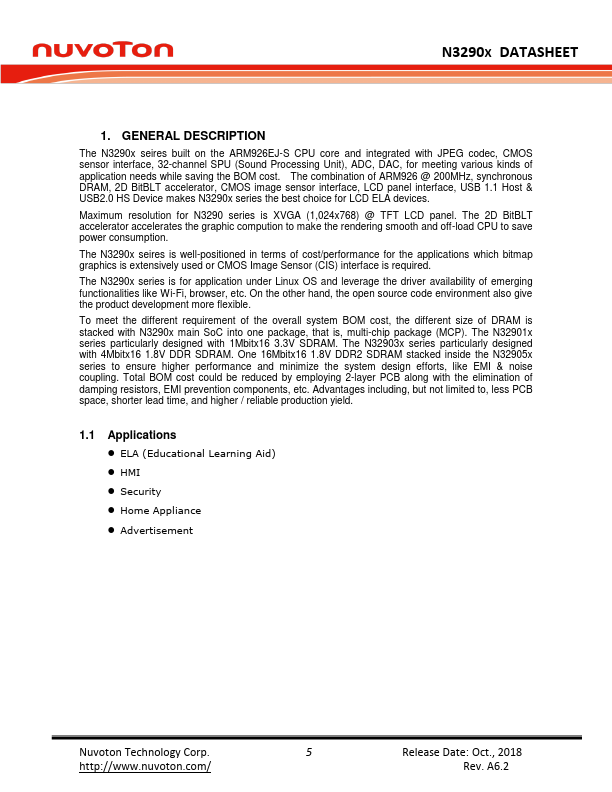

The N3290x seires built on the ARM926EJ-S CPU core and integrated with JPEG codec, CMOS sensor interface, 32-channel SPU (Sound Processing Unit), ADC, DAC, for meeting various kinds of application needs while saving the BOM cost. The bination of ARM926 @ 200MHz, synchronous DRAM, 2D BitBLT accelerator, CMOS image sensor interface, LCD panel interface, USB 1.1 Host & USB2.0 HS Device makes N3290x series the best...

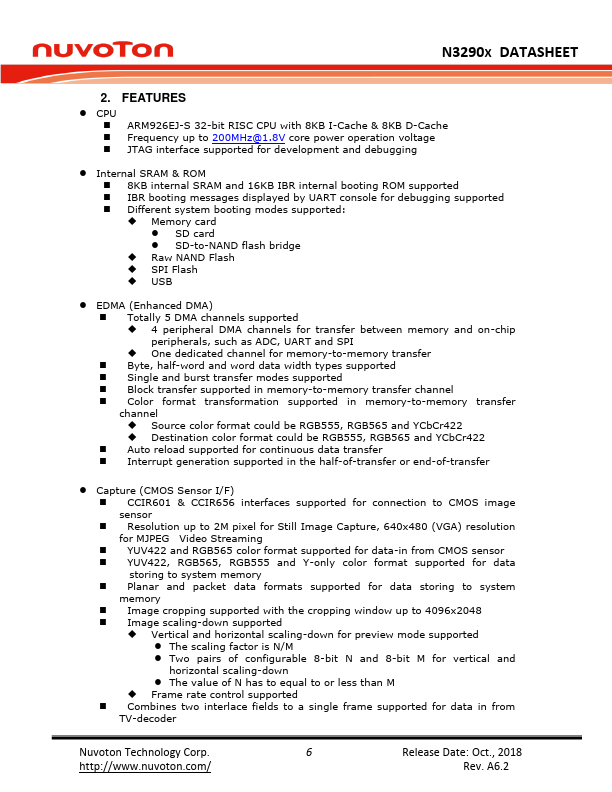

N32901U1DN Key Features
- ARM926EJ-S 32-bit RISC CPU with 8KB I-Cache & 8KB D-Cache
- Frequency up to 200MHz@1.8V core power operation voltage
- JTAG interface supported for development and debugging
- Internal SRAM & ROM
- 8KB internal SRAM and 16KB IBR internal booting ROM supported
- IBR booting messages displayed by UART console for debugging supported
- Different system booting modes supported
- Memory card
- SD card
- SD-to-NAND flash bridge
