N567G030 Datasheet | Nuvoton Technology

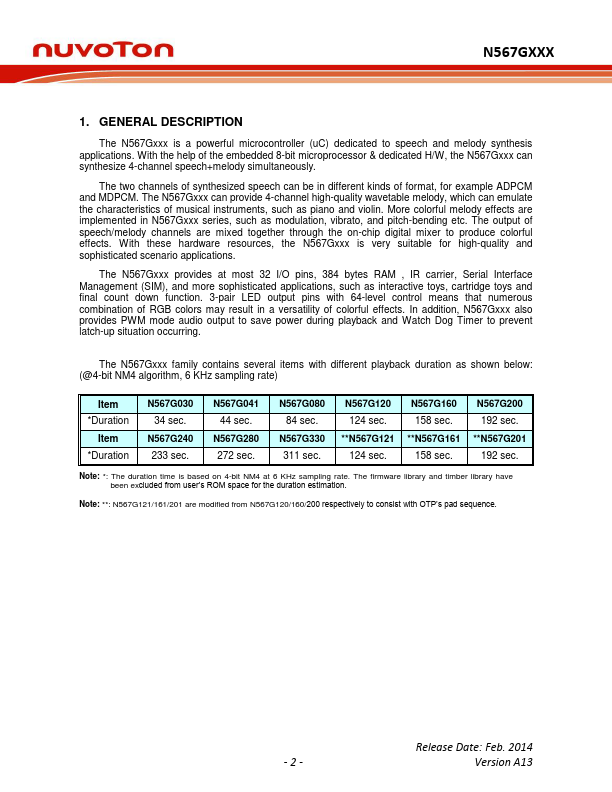

N567GXXX 1. GENERAL DESCRIPTION The N567Gxxx is a powerful microcontroller (uC) dedicated to speech and melody synthesis applications. With the help of the embedded 8-bit microprocessor & dedicated H/W, the N567Gxxx can synthesize 4-channel speech+melody simultaneously. The two channels of synthesized speech can be in different kinds of format, for example ADPCM and MDPCM. The N567Gxxx can provide 4-channel high-quality wavetable melody, which can emulate the characteristics of musical instruments, such as piano and violin. More colorful melody effects are implemented in N567Gxxx series, such as modulation, vibrato, and pitch-bending etc. The output of speech/melody channels are mixed...
