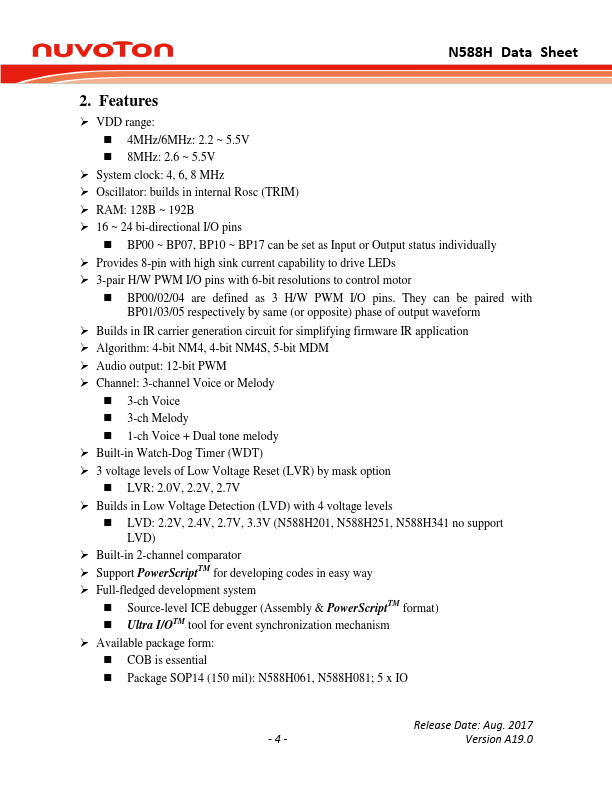

N588H340 Key Features
- VDD range
- 4MHz/6MHz: 2.2 ~ 5.5V
- 8MHz: 2.6 ~ 5.5V
- System clock: 4, 6, 8 MHz
- Oscillator: builds in internal Rosc (TRIM)
- RAM: 128B ~ 192B
- 16 ~ 24 bi-directional I/O pins
- BP00 ~ BP07, BP10 ~ BP17 can be set as Input or Output status individually
- Provides 8-pin with high sink current capability to drive LEDs
- 3-pair H/W PWM I/O pins with 6-bit resolutions to control motor
