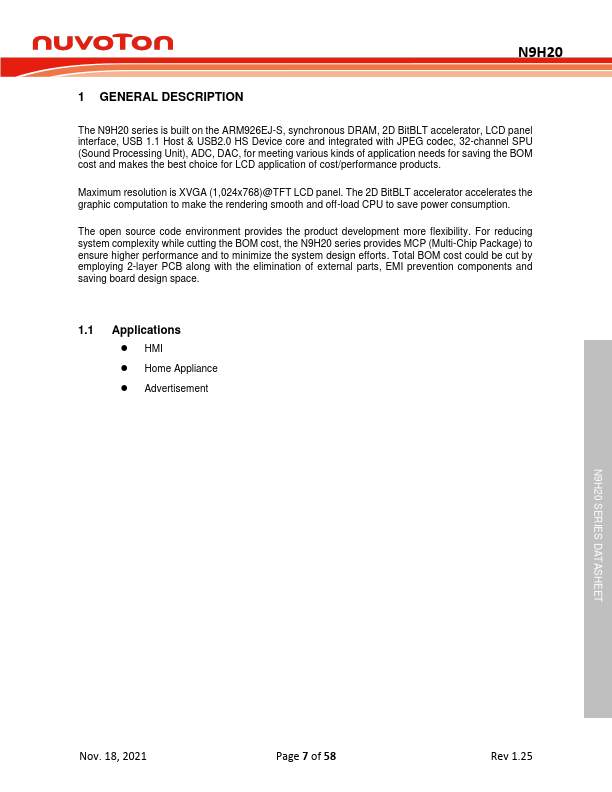

N9H20K31N Overview
The N9H20 series is built on the ARM926EJ-S, synchronous DRAM, 2D BitBLT accelerator, LCD panel interface, USB 1.1 Host & USB2.0 HS Device core and integrated with JPEG codec, 32-channel SPU (Sound Processing Unit), ADC, DAC, for meeting various kinds of application needs for saving the BOM cost and makes the best choice for LCD application of cost/performance products. Maximum resolution is XVGA (1,024x768)@TFT LCD...

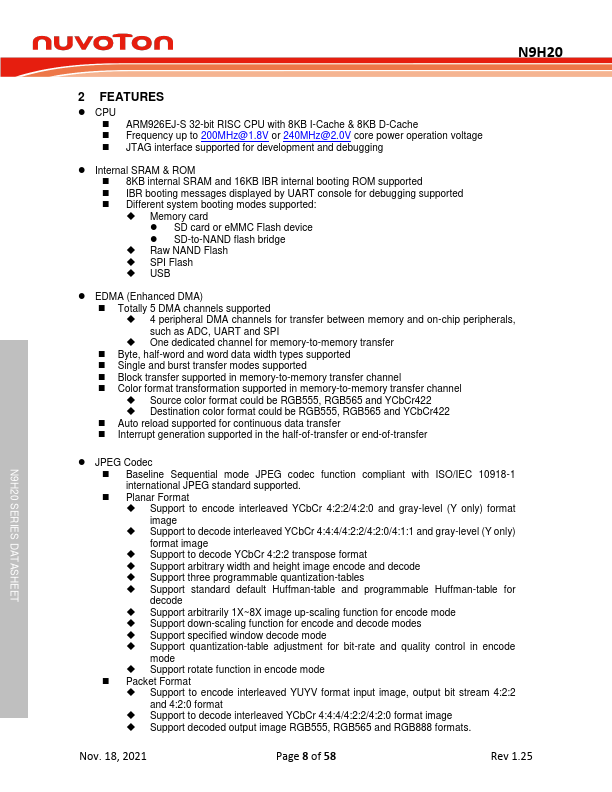

N9H20K31N Key Features
- ARM926EJ-S 32-bit RISC CPU with 8KB I-Cache & 8KB D-Cache
- Frequency up to 200MHz@1.8V or 240MHz@2.0V core power operation voltage
- JTAG interface supported for development and debugging
- Internal SRAM & ROM
- 8KB internal SRAM and 16KB IBR internal booting ROM supported
- IBR booting messages displayed by UART console for debugging supported
- Different system booting modes supported
- Memory card
- SD card or eMMC Flash device
- SD-to-NAND flash bridge
