N9H26K63N
Description

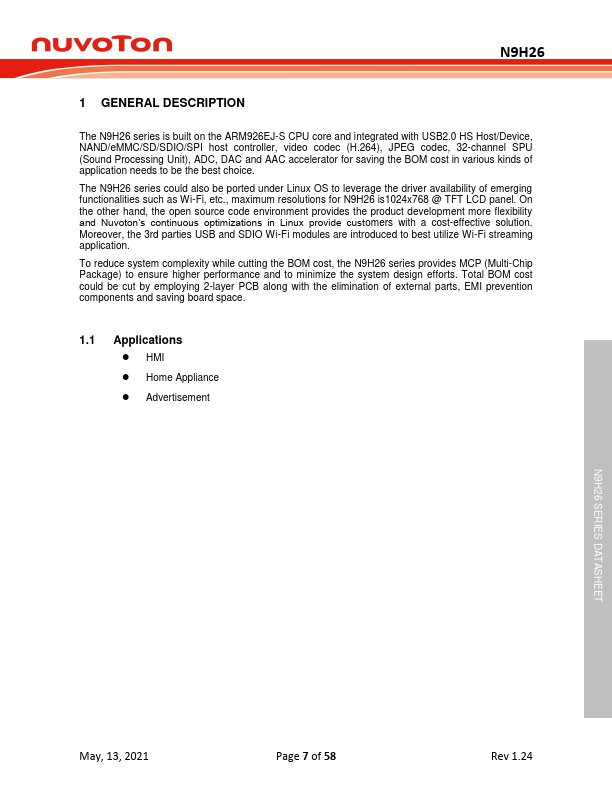

The N9H26 series is built on the ARM926EJ-S CPU core and integrated with USB2.0 HS Host/Device, NAND/eMMC/SD/SDIO/SPI host controller, video codec (H.264), JPEG codec, 32-channel SPU (Sound Processing Unit), ADC, DAC and AAC accelerator for saving the BOM cost in various kinds of application needs to be the best choice.

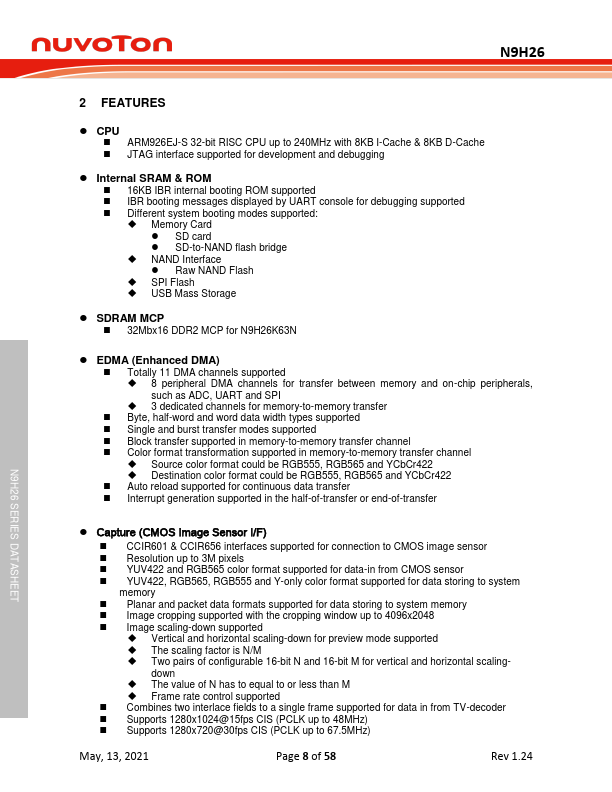

Key Features
- ARM926EJ-S 32-bit RISC CPU up to 240MHz with 8KB I-Cache & 8KB D-Cache
- JTAG interface supported for development and debugging
- Internal SRAM & ROM
- 16KB IBR internal booting ROM supported
- IBR booting messages displayed by UART console for debugging supported
- Different system booting modes supported: Memory Card
- SD-to-NAND flash bridge NAND Interface
- Raw NAND Flash SPI Flash USB Mass Storage
- 32Mbx16 DDR2 MCP for N9H26K63N
- EDMA (Enhanced DMA)
