NAU83U15

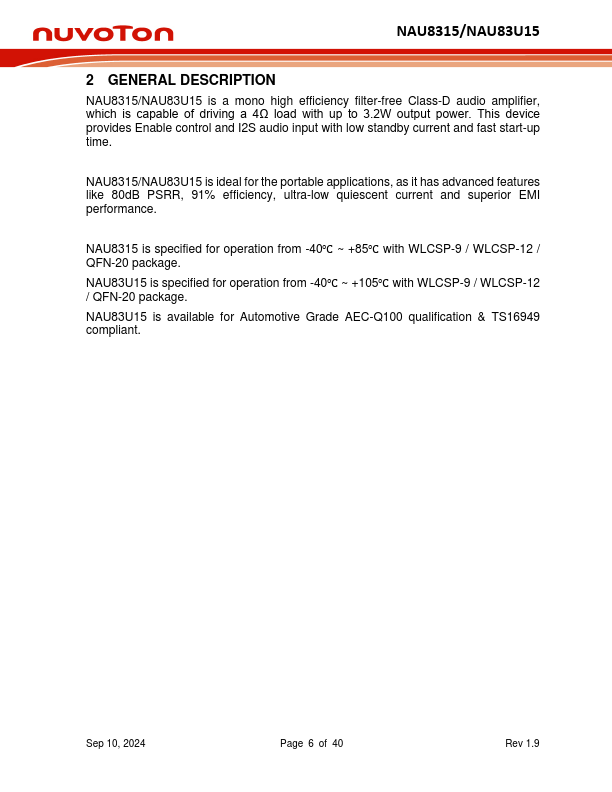

Description
NAU8315/NAU83U15 is a mono high efficiency filter-free Class-D audio amplifier, which is capable of driving a 4Ω load with up to 3.2W output power. This device provides Enable control and I2S audio input with low standby current and fast start-up time.

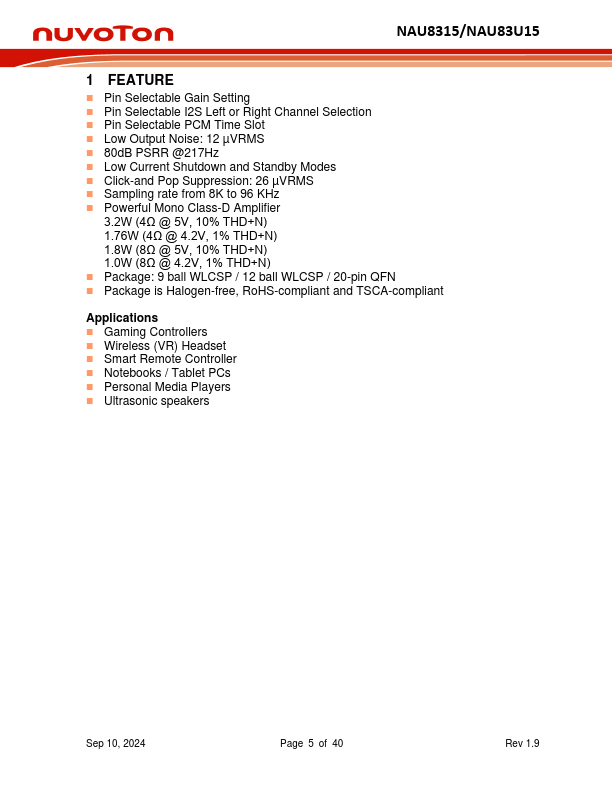

Key Features
- Pin Selectable Gain Setting
- Pin Selectable I2S Left or Right Channel Selection
- Pin Selectable PCM Time Slot
- Low Output Noise: 12 µVRMS
- 80dB PSRR @217Hz
- Low Current Shutdown and Standby Modes
- Click-and Pop Suppression: 26 µVRMS
- Sampling rate from 8K to 96 KHz
- Powerful Mono Class-D Amplifier
- 2W (4Ω @ 5V, 10% THD+N) 1.76W (4Ω @ 4.2V, 1% THD+N) 1.8W (8Ω @ 5V, 10% THD+N) 1.0W (8Ω @ 4.2V, 1% THD+N)
