NAU85L40B - Quad Audio ADC

Description

The NAU85L40B is a low power, high quality, 4-channel ADC for microphone array application.

The NAU85L40B integrates programmable gain preamplifiers for quad differential microphones, significantly reducing external component requirements.

Features

  • 101dB SNR (A-weighted) @ 0dB gain, VDDA=1.8V, Fs = 48 kHz, OSR=128x.
  • 92dB THD+N @ 0dB gain, 0.8Vrms in, VDDA=1.8V, Fs=48 kHz, OSR=128x.
  • -124dB Channel Crosstalk @ 0dB gain, 0.9Vrms in, VDDA=1.8V, Fs=48 kHz, OSR=128x.
  • Integrated programmable gain microphone amplifier.
  • On-chip FLL.
  • I2C Serial control interface with read/write capability.
  • Supports sample rates from 8 kHz to 96 kHz at 24bit resolution.
  • Two separate microphone bias supplies for low noise micr.

📥 Download Datasheet

Datasheet preview – NAU85L40B

Datasheet Details

Part number NAU85L40B
Manufacturer Nuvoton
File Size 1.17 MB
Description Quad Audio ADC
Datasheet download datasheet NAU85L40B Datasheet
Additional preview pages of the NAU85L40B datasheet.

📁 Similar Datasheet

  • NAU8501 - 24-Bit Stereo Audio ADC (Nuvoton Technology)
  • NAU8220 - 2Vrms Audio Line Driver (Nuvoton Technology)
  • NAU8401 - 24-bit Stereo Audio DAC (Nuvoton Technology)
  • NAU8402 - Stereo 24-Bit DAC (Nuvoton Technology)
  • NAU8811 - Mono Audio Codec (Nuvoton Technology)
  • NAU8812 - Mono Audio Codec (Nuvoton Technology)
  • NAU8814 - Mono Audio Codec (Nuvoton Technology)
  • NAU8820 - Low Power 24-Bit Stereo Audio Codec (Nuvoton Technology)
  • NAU8822A - 24-bit Stereo Audio Codec (Nuvoton Technology)
Other Datasheets by nuvoton
  • NAU85L20 - Dual Audio ADC
  • NAU8500 - 24-bit Mono Audio ADC
  • NAU82011VG - 3.1W Mono Filter-Free Class-D Audio Amplifier
  • NAU82011WG - 2.9 W Mono Filter-Free Class-D Audio Amplifier
  • NAU82028 - 3.1W Mono Filter-Free Class-D Audio Amplifier
  • NAU82039 - 3.2W Mono Filter-Free Class-D Audio Amplifier
  • NAU8214 - 2.9W Mono Filter-Free Class-D Audio Amplifier
  • NAU8223 - 3.1W Stereo Filter-Free Class-D Audio Amplifier

Full PDF Text Transcription

Click to expand full text

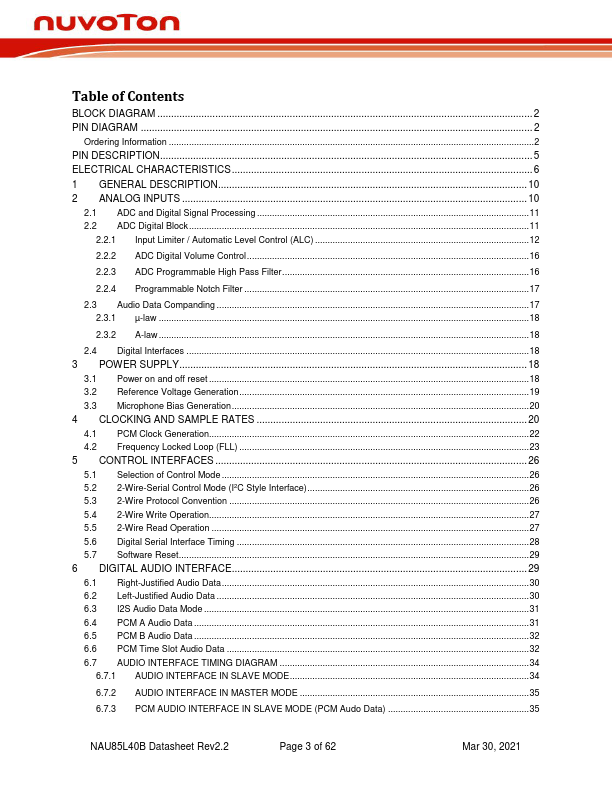

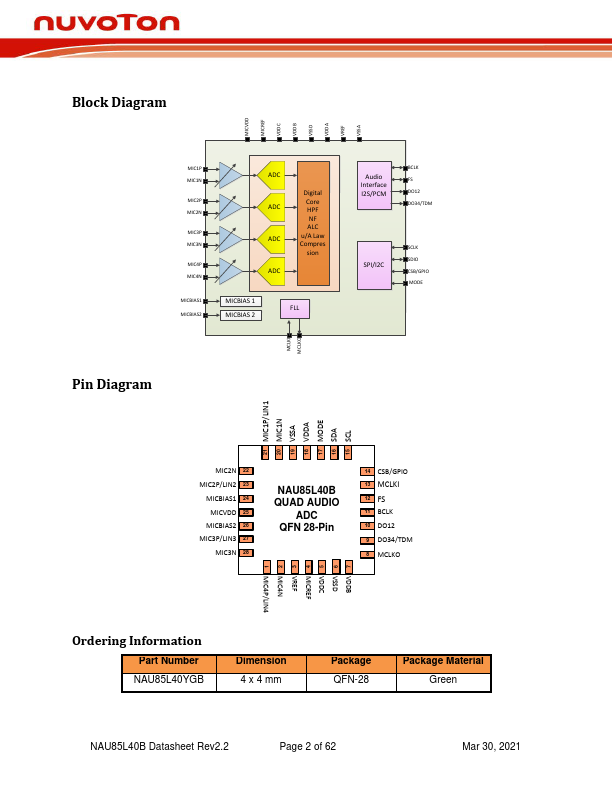

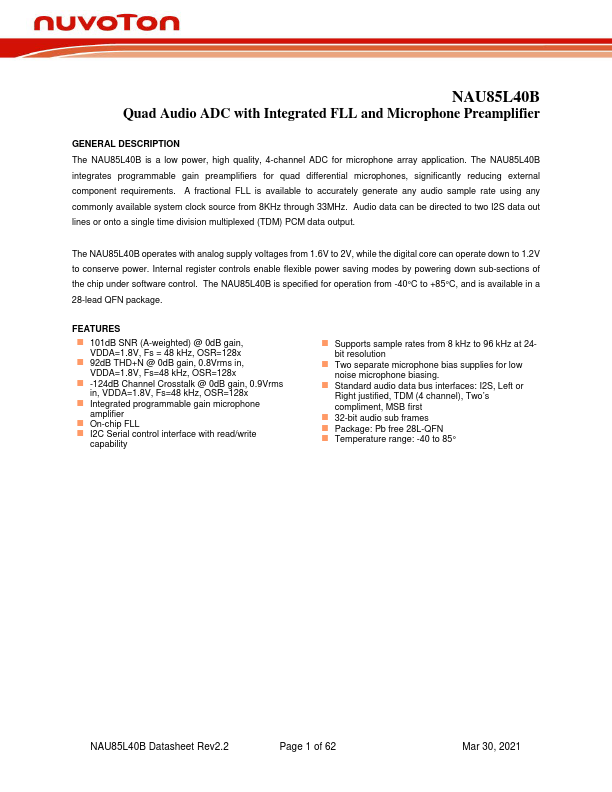

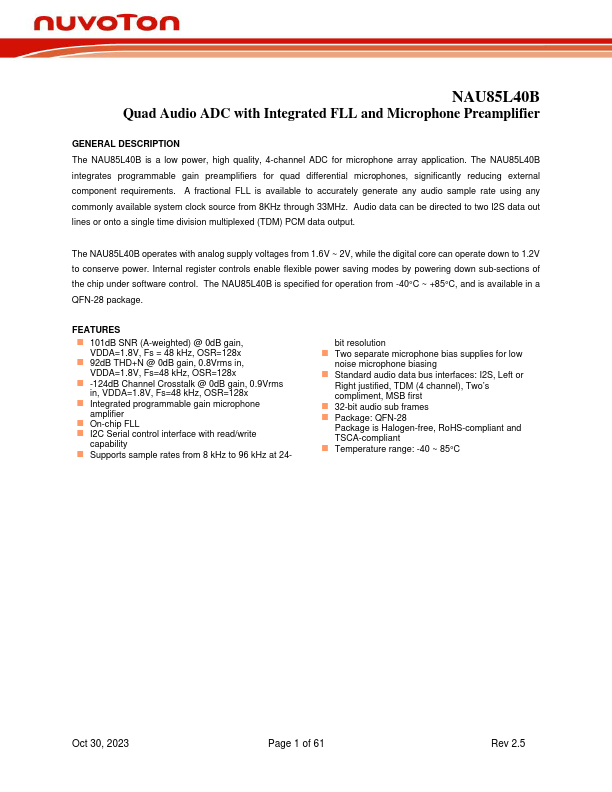

NAU85L40B Quad Audio ADC with Integrated FLL and Microphone Preamplifier GENERAL DESCRIPTION The NAU85L40B is a low power, high quality, 4-channel ADC for microphone array application. The NAU85L40B integrates programmable gain preamplifiers for quad differential microphones, significantly reducing external component requirements. A fractional FLL is available to accurately generate any audio sample rate using any commonly available system clock source from 8KHz through 33MHz. Audio data can be directed to two I2S data out lines or onto a single time division multiplexed (TDM) PCM data output. The NAU85L40B operates with analog supply voltages from 1.6V to 2V, while the digital core can operate down to 1.2V to conserve power.
