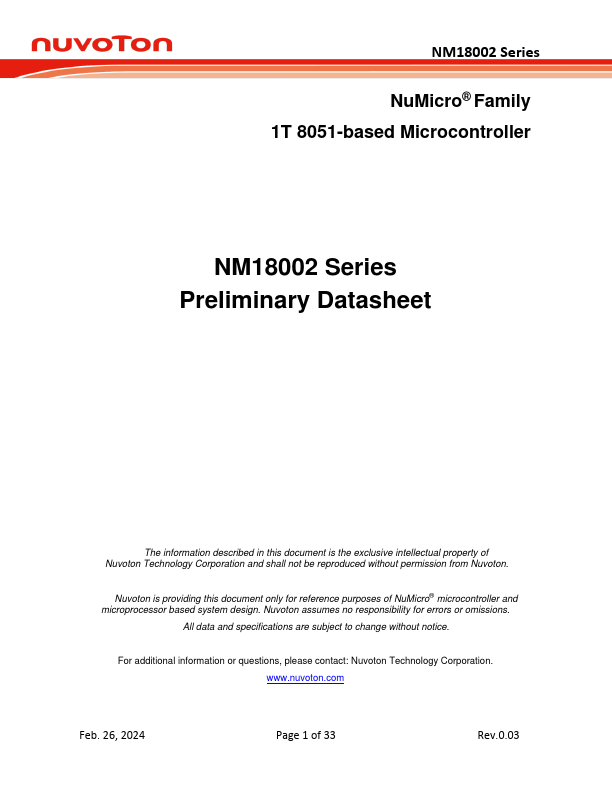

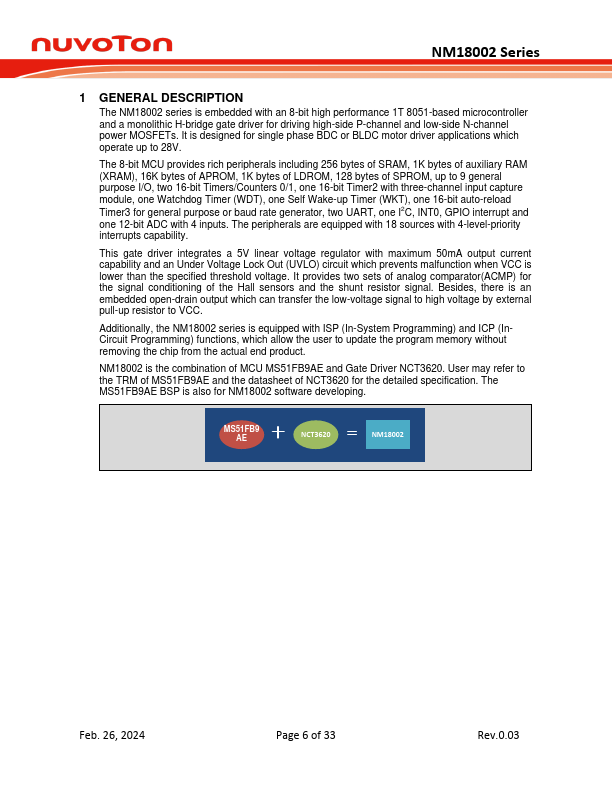

NM18002 Series Nu Micro® Family 1T 8051-based Microcontroller NM18002 Series Preliminary Datasheet The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of Nu Micro® microcontroller and microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions. All data and specifications are subject to change without notice. For additional information or questions, please contact: Nuvoton Technology Corporation. .nuvoton. Feb. 26, 2024 Page 1 of 33 Rev.0.03 NM18002 Series 1 GENERAL DESCRIPTION The NM18002 series is embedded with an 8-bit high performance 1T 8051-based microcontroller and a monolithic H-bridge gate driver for driving high-side P-channel and low-side N-channel power MOSFETs. It is designed for single phase BDC or BLDC motor driver applications which operate up to 28V. The 8-bit MCU provides rich peripherals including 256 bytes of SRAM, 1K bytes of auxiliary RAM (XRAM), 16K bytes of APROM, 1K bytes of LDROM, 128 bytes of SPROM, up to 9 general purpose I/O, two 16-bit Timers/Counters 0/1, one 16-bit Timer2 with three-channel input capture module, one Watchdog Timer (WDT), one Self Wake-up Timer (WKT), one 16-bit auto-reload Timer3 for general purpose or baud rate generator, two UART, one I2C, INT0, GPIO interrupt and one 12-bit ADC with 4 inputs. The peripherals are equipped with 18 sources with 4-level-priority interrupts capability. This gate driver integrates a 5V linear voltage regulator with maximum 50m A output current capability and an Under Voltage Lock Out (UVLO) circuit which prevents malfunction when VCC is lower than the specified threshold voltage. It provides two sets of analog parator(ACMP) for the signal conditioning of the Hall sensors and the shunt resistor signal. Besides, there is an embedded open-drain output which...
