NPCA120
NPCA120 is Sound Enhancing manufactured by Nuvoton Technology.

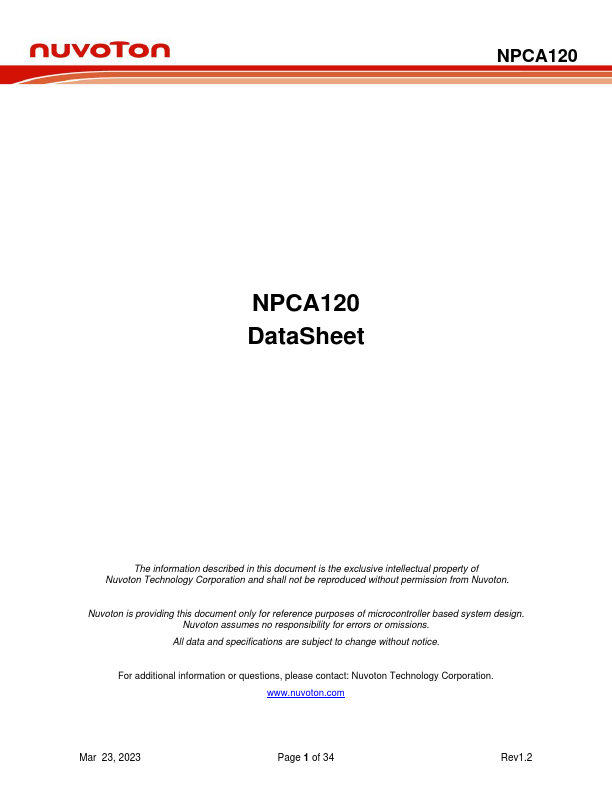

NPCA120 Data Sheet
The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of microcontroller based system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation. .nuvoton.
Mar 23, 2023
Page 1 of 34
Rev1.2

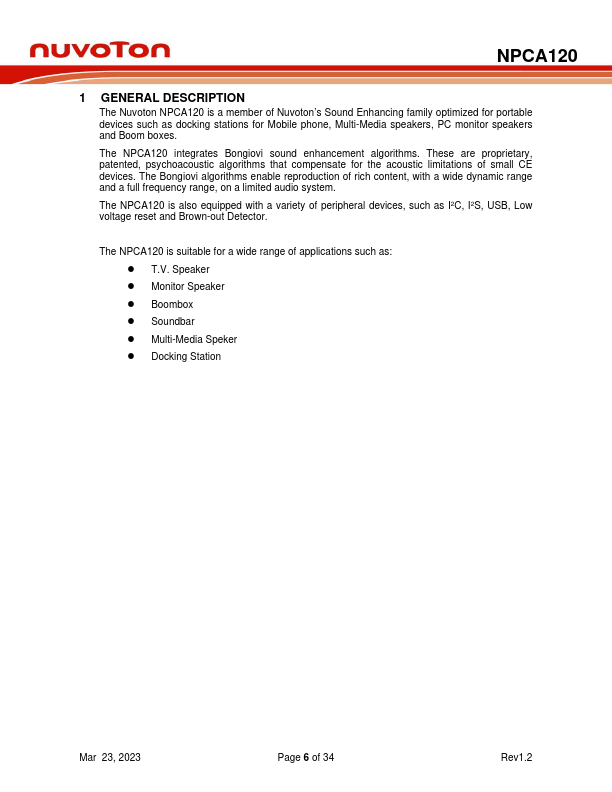

1 GENERAL DESCRIPTION
The Nuvoton NPCA120 is a member of Nuvoton’s Sound Enhancing family optimized for portable devices such as docking stations for Mobile phone, Multi-Media speakers, PC monitor speakers and Boom boxes. The NPCA120 integrates Bongiovi sound enhancement algorithms. These are proprietary, patented, psychoacoustic algorithms that pensate for the acoustic limitations of small CE devices. The Bongiovi algorithms enable reproduction of rich content, with a wide dynamic range and a full frequency range, on a limited audio system. The NPCA120 is also equipped with a variety of peripheral devices, such as I2C, I2S, USB, Low voltage reset and Brown-out Detector.
The NPCA120 is suitable for a wide range of applications such as:
- T.V. Speaker
- Monitor Speaker
- Boombox
- Soundbar
- Multi-Media Speker
- Docking Station
Mar 23, 2023
Page 6 of 34
Rev1.2

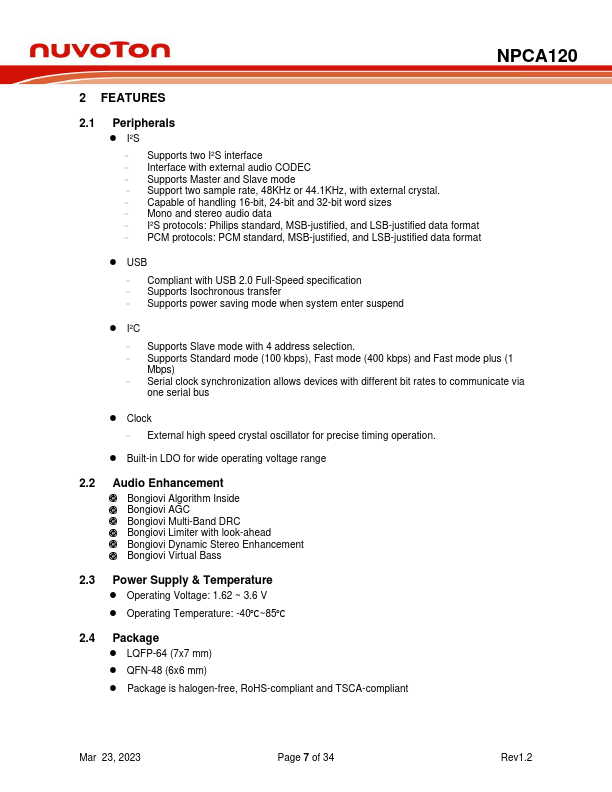

2 Features
2.1 Peripherals
- I2S
- Supports two I2S interface
- Interface with external audio CODEC
- Supports Master and Slave mode
- Support two sample rate, 48KHz or 44.1KHz, with external crystal.
- Capable of handling 16-bit, 24-bit and 32-bit word sizes
- Mono and stereo audio data
- I2S protocols: Philips standard, MSB-justified, and LSB-justified data...
