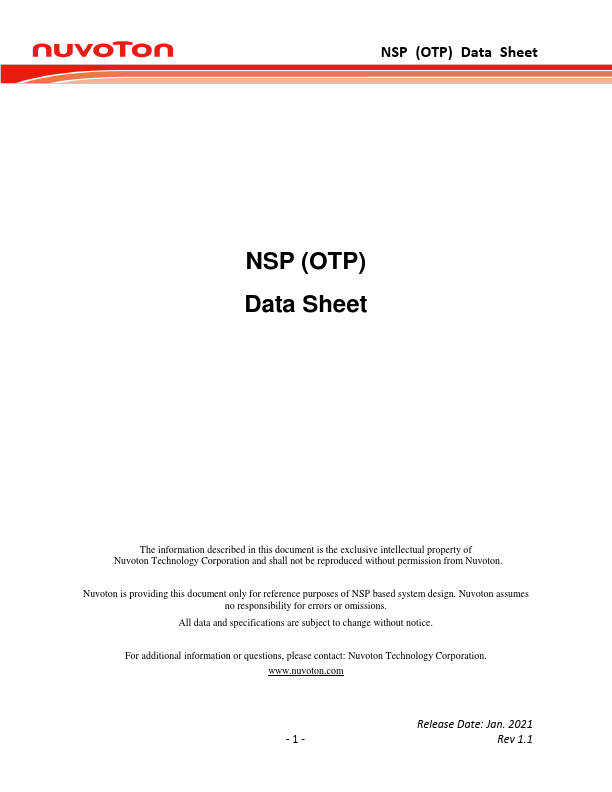

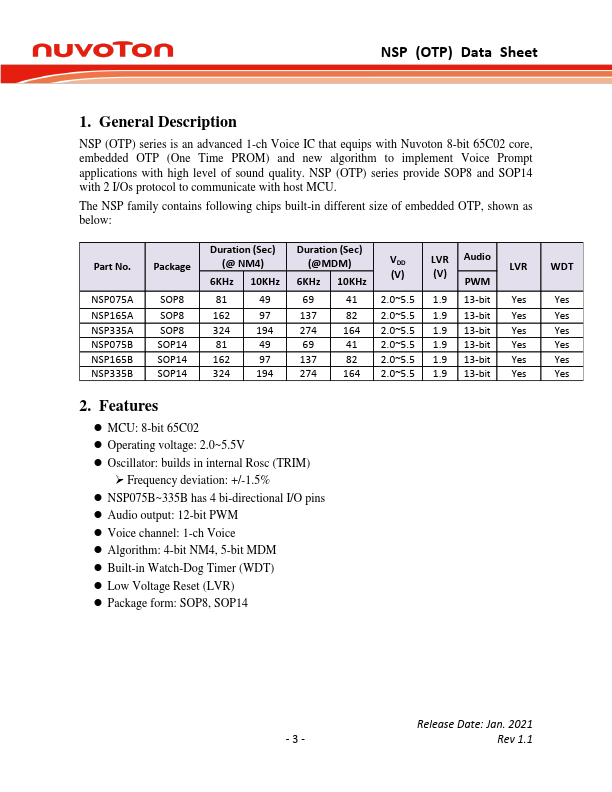

NSP (OTP) Data Sheet NSP (OTP) Data Sheet The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NSP based system design. Nuvoton assumes no responsibility for errors or omissions. All data and specifications are subject to change without notice. For additional information or questions, please contact: Nuvoton Technology Corporation. .nuvoton. Release Date: Jan. 2021 -1- Rev 1.1 NSP (OTP) Data Sheet 1. General Description NSP (OTP) series is an advanced 1-ch Voice IC that equips with Nuvoton 8-bit 65C02 core, embedded OTP (One Time PROM) and new algorithm to implement Voice Prompt applications with high level of sound quality. NSP (OTP) series provide SOP8 and SOP14 with 2 I/Os protocol to municate with host MCU. The NSP family contains following chips built-in different size of embedded OTP, shown as below: Duration (Sec) Duration (Sec) Part No. Package (@ NM4) (@MDM) 6KHz 10KHz 6KHz 10KHz (V) LVR Audio (V) PWM NSP075A SOP8 41 2.0~5.5 1.9 13-bit Yes NSP165A SOP8 82 2.0~5.5 1.9 13-bit Yes NSP335A SOP8 194 274 164 2.0~5.5 1.9 13-bit Yes NSP075B SOP14 41 2.0~5.5 1.9 13-bit Yes NSP165B SOP14 162 82 2.0~5.5 1.9 13-bit...
