NUC121 Overview
Key Specifications
Operating Voltage: 3.3 V
Max Voltage (typical range): 5.5 V
Min Voltage (typical range): 2.5 V
Max Frequency: 24 MHz

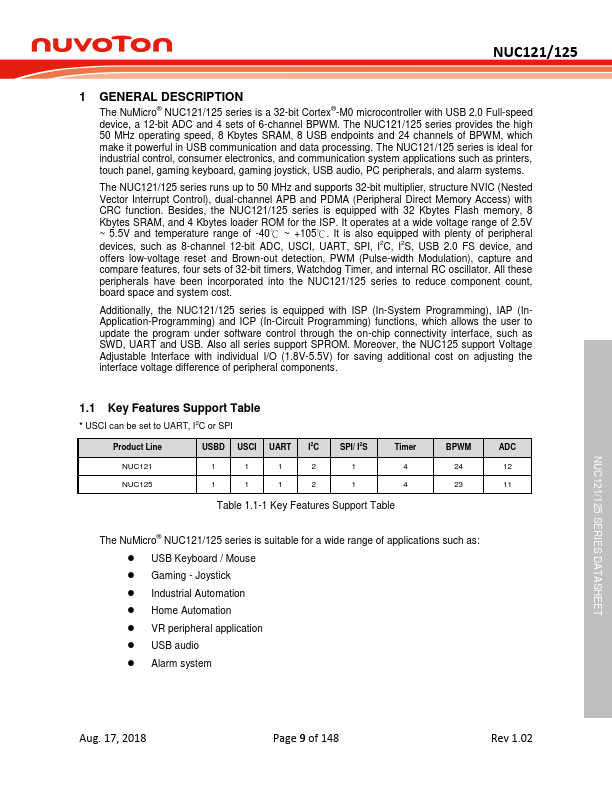

Description
The NuMicro® NUC121/125 series is a 32-bit Cortex® -M0 microcontroller with USB 2.0 Full-speed device, a 12-bit ADC and 4 sets of 6-channel BPWM. The NUC121/125 series provides the high 50 MHz operating speed, 8 Kbytes SRAM, 8 USB endpoints and 24 channels of BPWM, which make it powerful in USB communication and data processing.

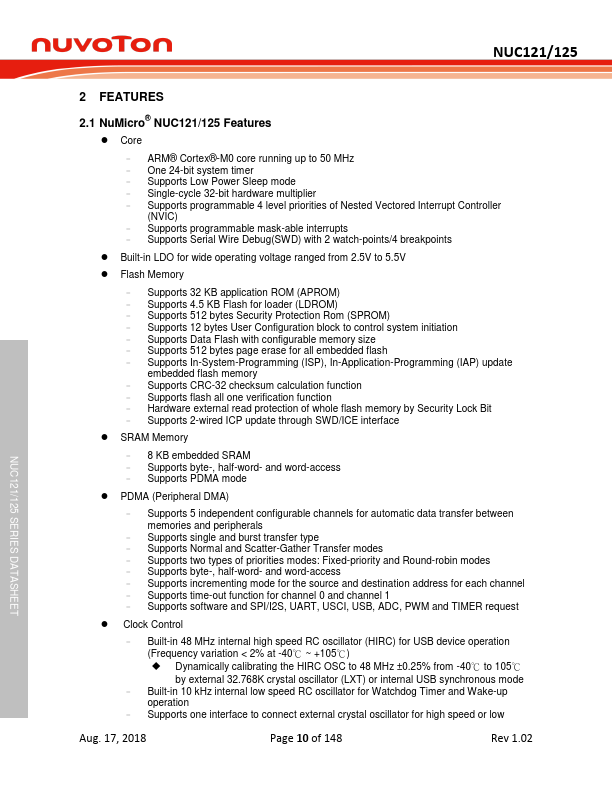

Key Features
- four sets of 32-bit timers, Watchdog Timer, and internal R
