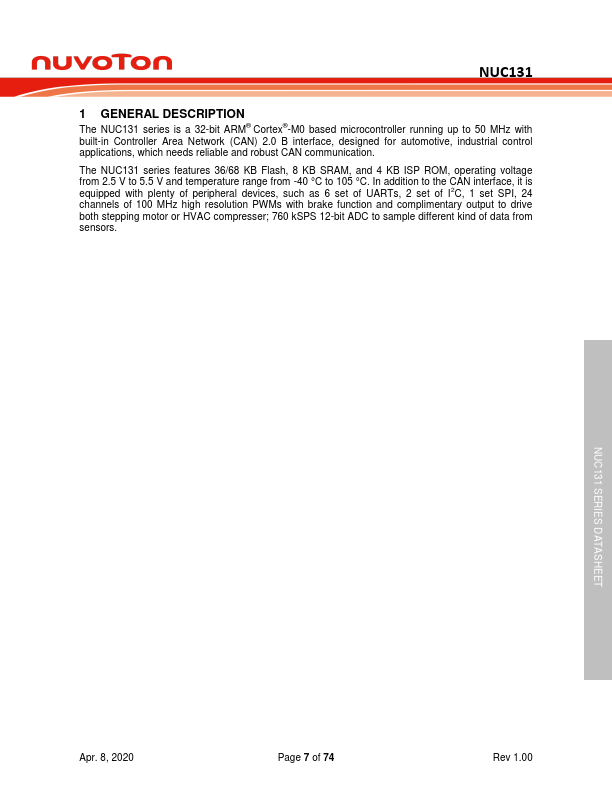

NUC131SC2AE Description
The NUC131 series is a 32-bit ARM® Cortex® -M0 based microcontroller running up to 50 MHz with built-in Controller Area Network (CAN) 2.0 B interface, designed for automotive, industrial control applications, which needs reliable and robust CAN munication.

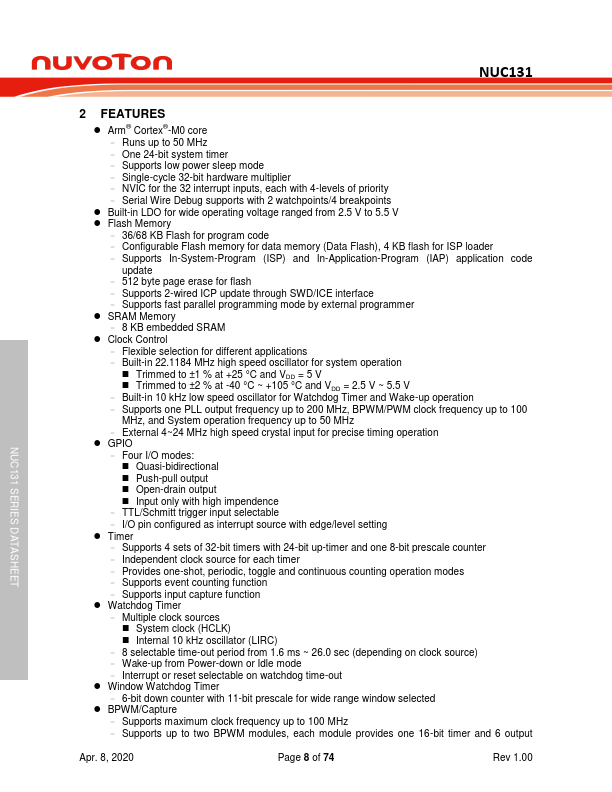

NUC131SC2AE Key Features
- Arm® Cortex® -M0 core
- Runs up to 50 MHz
- One 24-bit system timer
- Supports low power sleep mode
- Single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-levels of priority
- Serial Wire Debug supports with 2 watchpoints/4 breakpoints
- Built-in LDO for wide operating voltage ranged from 2.5 V to 5.5 V
- Flash Memory
- 36/68 KB Flash for program code
