W567B120 Overview

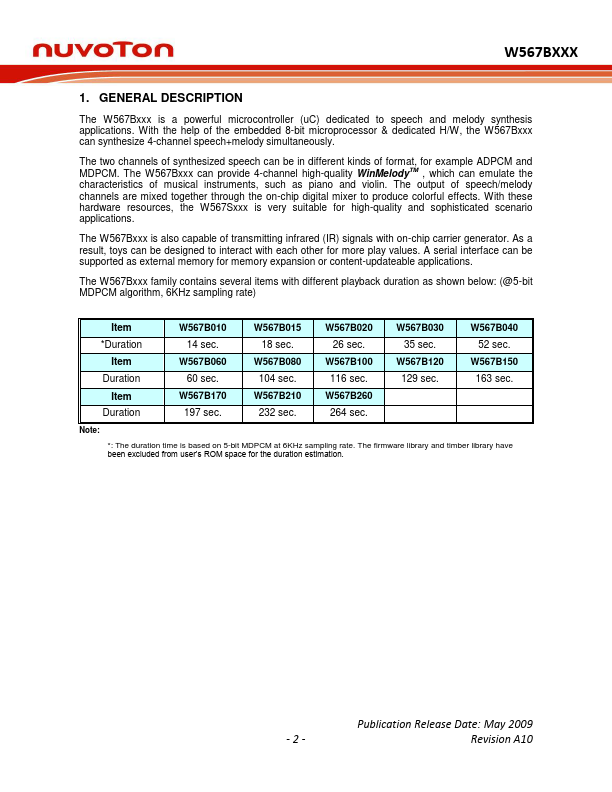

Description
The W567Bxxx is a powerful microcontroller (uC) dedicated to speech and melody synthesis applications. With the help of the embedded 8-bit microprocessor & dedicated H/W, the W567Bxxx can synthesize 4-channel speech+melody simultaneously.
Key Features
- Wide range of operating voltage
- 8 MHz @ 3.0 volt ~ 5.5 volt
- 4 MHz @ 2.4 volt ~ 5.5 volt
- Power management
- 4 ~ 8 MHz system clocks, with Ring type and Crystal type
- Stop mode for stopping all IC operations
- Provides up to 8
