W567J100
Description

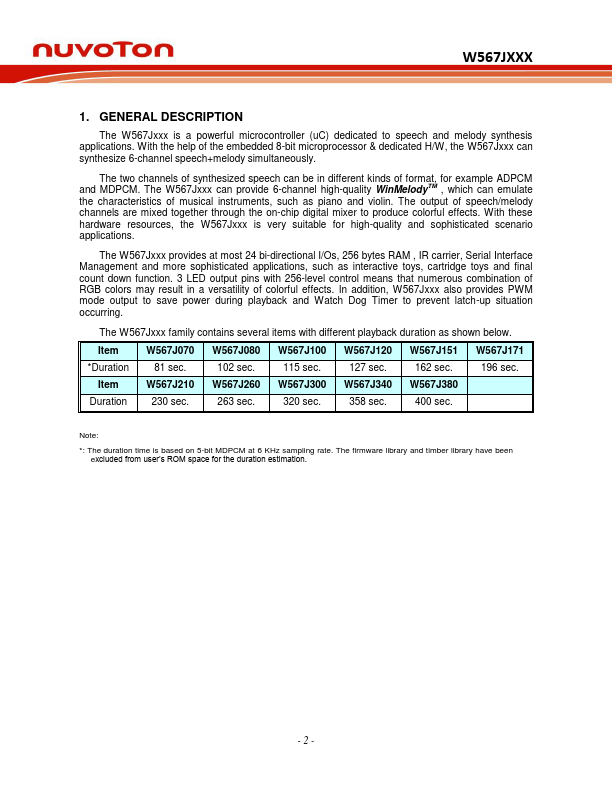

The W567Jxxx is a powerful microcontroller (uC) dedicated to speech and melody synthesis applications.
Key Features
- Multiple format parser that supports
- 6-bit MDPCM, 5-bit MDPCM, 4-bit MDPCM ,4-bit ADPCM, 8-bit Log PCM algorithm can be used
- Pitch shippable ADPCM for voice changer application
- Programmable sample rate Melody synthesis
- 6 melody channels that can emulate characteristics of musical instruments
- W55Fxx, W551Cxx
- Source-level ICE debugger (Assembly & PowerScriptTM format)
- Ultra I/OTM tool for event synchronization mechanism
- ICE system with USB port
- User-friendly GUI environment Available package form
