GENERAL DESCRIPTION

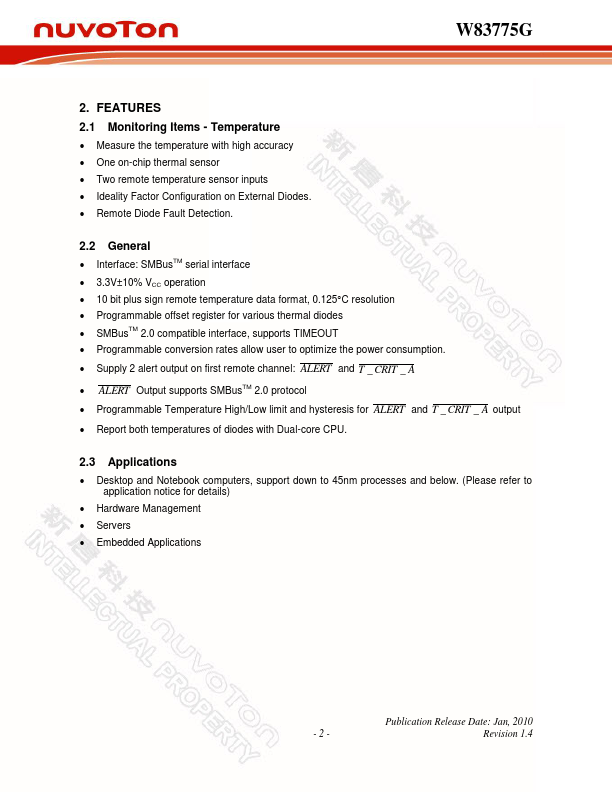

W83775G, a two remote and one local temperature sensor with 2 temperature alert outputs and with 2-wire System Management Bus (SMBusTM) serial interface, is Nuvoton hardware monitoring IC specifically designed for PC, notebook and any embedded environments. A 10-bit plus sign ADC (Analog to Digital Converter) with 0.125C resolutions is built inside the W83775G to convert the monitored temperature value. Programmable conversion rates and standby mode support low-power operation. The W83775G is high temperature accuracy, low-power consumption, SMBusTM serial interface IC and is available in 10-pin, TSSOP package. The working voltage is 3.3 V ± 10%. 1.1 Product Selection Guide PART NUMBER SMBUS ADDRESS W83775G 1001_100xb W83775G-2 1001_101xb Table 1.1 Part Selection FUNCTIONALITY REMOTE LOCAL OTHER PACKAGE Programmable TSSOP-10 2 1 temperature High/Low limit (MSOP-10) Publication Release Date: Jan, 2010 -1- Revision 1.4 W83775G 2. FEATURES
2.1 Monitoring Items - Tempe...
