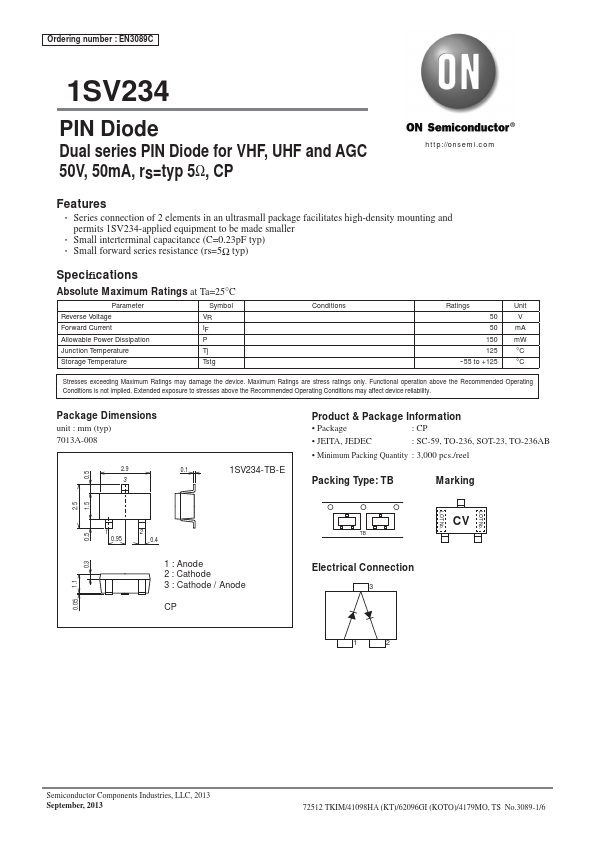

1SV234 Datasheet | onsemi

Features - Series connection of 2 elements in an ultrasmall package facilitates high-density mounting and permits 1SV234-applied equipment to be made smaller - Small interterminal capacitance (C=0.23p F typ) - Small forward series resistance (rs=5Ω typ) Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Reverse Voltage Forward Current Allowable Power Dissipation Junction Temperature Tj Storage Temperature Tstg Conditions Ratings Unit 50 m A 150 m W °C --55 to +125 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Remended Operating Conditions is not implied. Extended exposure to stresses above the Remended Operating Conditions may affect device reliability. Package Dimensions unit : mm (typ) 7013A-008 1SV234-TB-E Product & Package Information - Package : CP - JEITA, JEDEC : SC-59, TO-236, SOT-23,...
