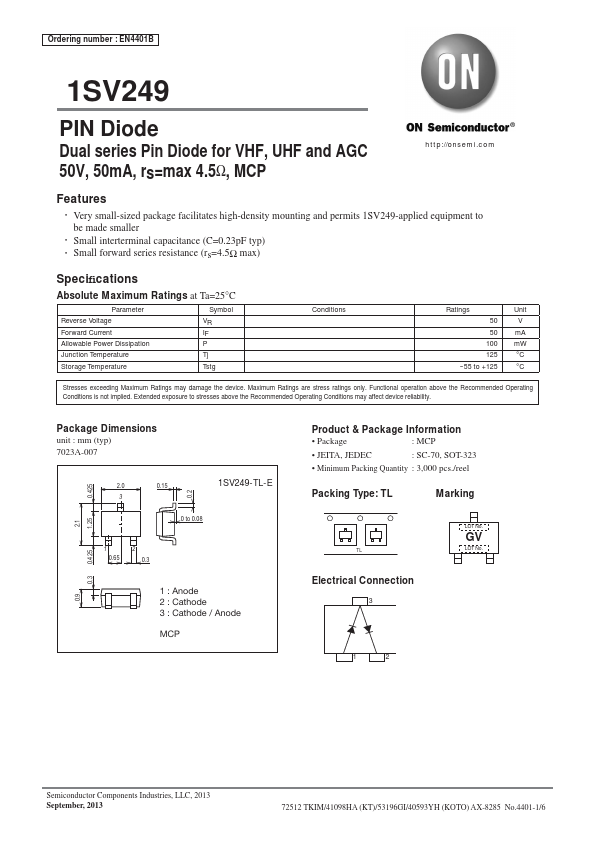

1SV249 Overview
EN4401B 1SV249 PIN Diode Dual series Pin Diode for VHF, UHF and AGC 50V, 50mA, rs=max 4.5Ω, MCP http://onsemi.
1SV249 Key Features
- Very small-sized package facilitates high-density mounting and permits 1SV249-applied equipment to be made smaller
- Small interterminal capacitance (C=0.23pF typ)
- Small forward series resistance (rs=4.5Ω max)
