BC182B - NPN Silicon Amplifier Transistors

onsemi

Download the BC182B datasheet PDF. This datasheet also covers the BC182 variant, as both devices belong to the same npn silicon amplifier transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

These are Pb.
Free Devices.

📥 Download Datasheet

BC182B npn silicon amplifier transistors by onsemi - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BC182-onsemi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BC182B
Manufacturer	onsemi
File Size	56.25 KB
Description	NPN Silicon Amplifier Transistors
Datasheet	BC182B Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BC182B	NPN SILICON PLANAR EPITAXIAL TRANSISTORS	CDIL
BC182B	Amplifier Transistors	Motorola
BC182B	NPN General Purpose Amplifier	Fairchild
BC182	NPN Silicon Epitaxial Planar Transistor	SEMTECH
BC182	Amplifier Transistors	Motorola

Other Datasheets by onsemi

Part Number	Description
BC182	NPN Silicon Amplifier Transistors
BC182A	NPN Silicon Amplifier Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

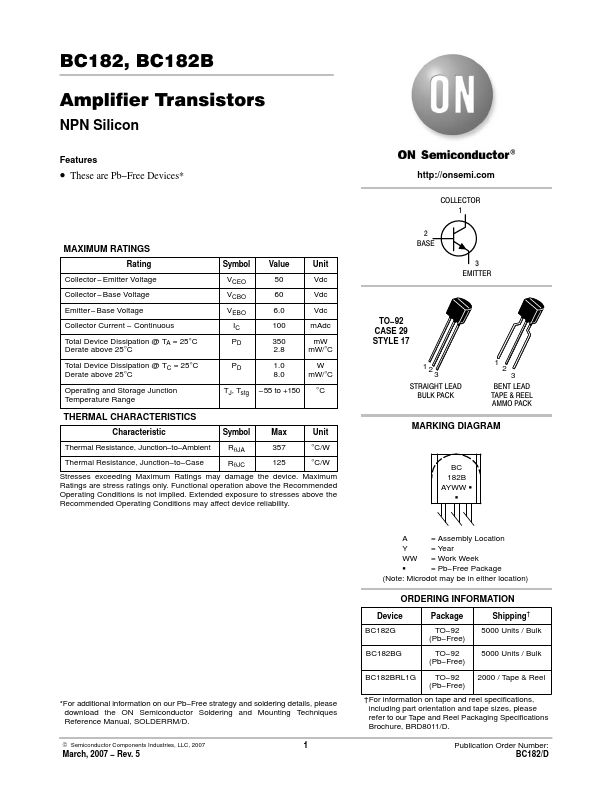

BC182, BC182B Amplifier Transistors NPN Silicon Features • These are Pb−Free Devices* MAXIMUM RATINGS Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous Total Device Dissipation @ TA = 25°C Derate above 25°C Symbol VCEO VCBO VEBO IC PD Value 50 60 6.0 100 350 2.8 Unit Vdc Vdc Vdc mAdc mW mW/°C Total Device Dissipation @ TC = 25°C PD 1.0 W Derate above 25°C 8.0 mW/°C Operating and Storage Junction Temperature Range TJ, Tstg −55 to +150 °C THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Thermal Resistance, Junction−to−Ambient RqJA 357 °C/W Thermal Resistance, Junction−to−Case RqJC 125 °C/W Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only.
