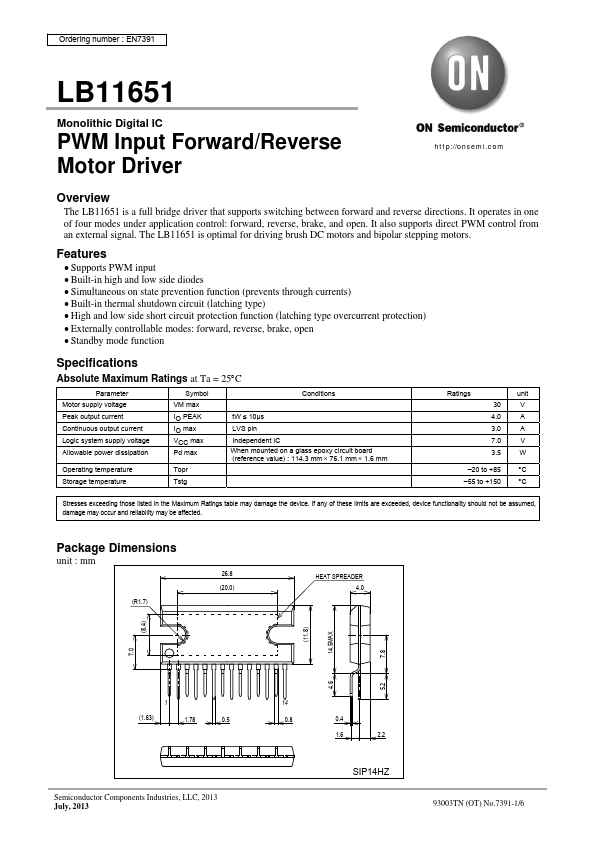

onsemi LB11651
The LB11651 is a full bridge driver that supports switching between forward and reverse directions. It operates in one of four modes under application control: forward, reverse, brake, and open. It also supports direct PWM control from an external signal.| Part No. | LB11651 |
|---|---|
| Datasheet | LB11651 Download |
| Manufacturer |  onsemi |
| Description | PWM Input Forward/Reverse Motor Driver |
| Buy | Stock & Price |
FEATURES
● Supports PWM input● Built-in high and low side diodes
● Simultaneous on state prevention function (prevents through currents)
● Built-in thermal shutdown circuit (latching type)
● High and low side short circuit protection function (latching type overcurrent protection)
● Externally controllable modes: forward, reverse, brake, open
● Standby mode function Specifications

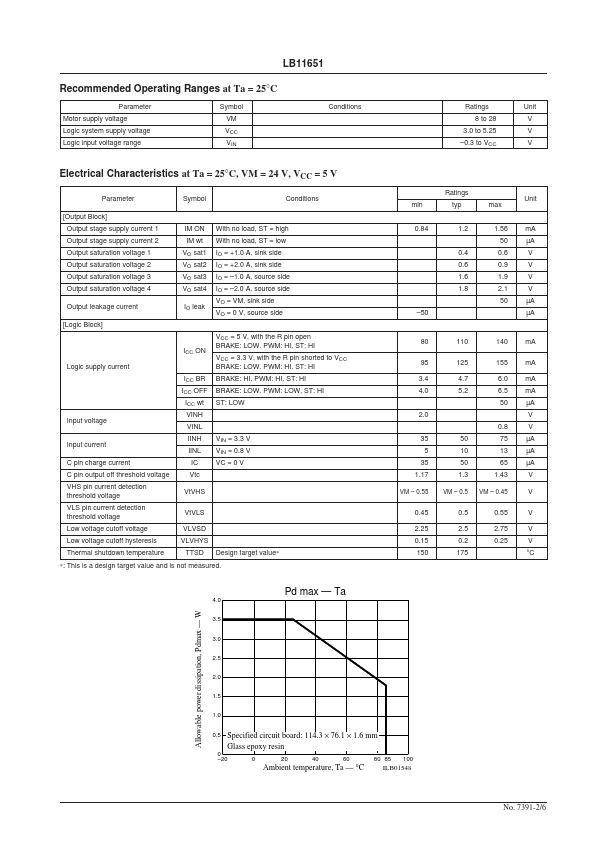

ABSOLUTE MAXIMUM RATINGS
at Ta = 25C Parameter Motor supply voltage Peak output current Continuous output current Logic system supply voltage Allowable power dissipation Operating temperature Storage temperature Symbol VM max IO PEAK IO max VCC max Pd max Topr Tstg Conditions tW ≤ 10μs LVS pin Independent IC When mounted on a glass epoxy circuit board (reference value) : 114.3 mm76.1 mm1.6 mm Ratings unit 30 V 4.0 A 3.0 A 7.0 V 3.5 W –20 to +85 C –55 to +150 C Stresses exceeding those listed in theMAXIMUM RATINGS
table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
