MAC08MT1 - Sensitive Gate Triacs

onsemi

Download the MAC08MT1 datasheet PDF. This datasheet also covers the MAC08BT1 variant, as both devices belong to the same sensitive gate triacs family and are provided as variant models within a single manufacturer datasheet.

Key Features

Sensitive Gate Trigger Current in Four Trigger Modes.
Blocking Voltage to 600 Volts.
Glass Passivated Surface for Reliability and Uniformity.
Surface Mount Package.
Pb.
Free Packages are Available.

📥 Download Datasheet

MAC08MT1 sensitive gate triacs by onsemi - Datasheet Preview — Note: The manufacturer provides a single datasheet file (MAC08BT1-onsemi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	MAC08MT1
Manufacturer	onsemi
File Size	86.43 KB
Description	Sensitive Gate Triacs
Datasheet	MAC08MT1 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MAC08MT1	Sensitive Gate Triacs	Kexin
MAC08MT1	Thyristors	Littelfuse
MAC08MT1	Triac	Motorola
MAC08A	MAC08A	Tesla
MAC08BT1	Sensitive Gate Triacs	Kexin

Other Datasheets by onsemi

Part Number	Description
MAC08BT1	Sensitive Gate Triacs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

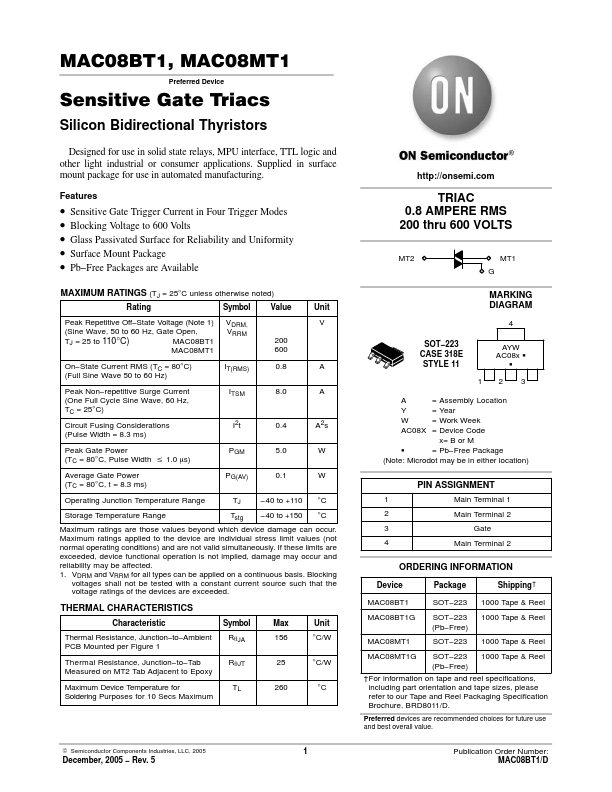

MAC08BT1, MAC08MT1 Preferred Device Sensitive Gate Triacs Silicon Bidirectional Thyristors Designed for use in solid state relays, MPU interface, TTL logic and other light industrial or consumer applications. Supplied in surface mount package for use in automated manufacturing. Features • Sensitive Gate Trigger Current in Four Trigger Modes • Blocking Voltage to 600 Volts • Glass Passivated Surface for Reliability and Uniformity • Surface Mount Package • Pb−Free Packages are Available MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Rating Symbol Value Unit Peak Repetitive Off−State Voltage (Note 1) VDRM, V (Sine Wave, 50 to 60 Hz, Gate Open, VRRM TJ = 25 to 110°C) MAC08BT1 200 MAC08MT1 600 On−State Current RMS (TC = 80°C) IT(RMS) 0.
