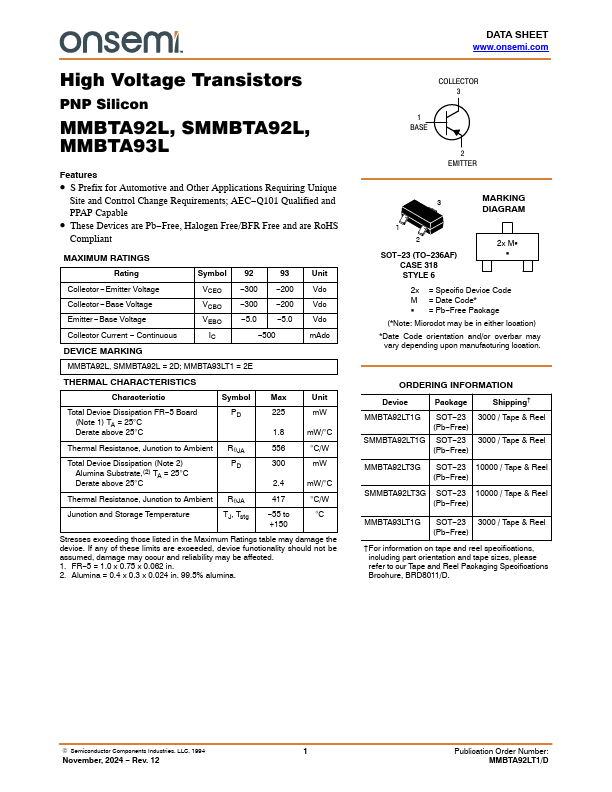

MMBTA92L
MMBTA92L is PNP Silicon High Voltage Transistors manufactured by onsemi.
Features
- S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
MAXIMUM RATINGS
Rating
Symbol 92
Unit
Collector
- Emitter Voltage Collector
- Base Voltage Emitter
- Base Voltage Collector Current
- Continuous DEVICE MARKING
VCEO VCBO VEBO
- 300
- 200
- 300
- 200
- 5.0
- 5.0
- 500
Vdc Vdc Vdc m Adc
MMBTA92L, SMMBTA92L = 2D; MMBTA93LT1 = 2E
THERMAL CHARACTERISTICS
Characteristic
Symbol Max
Unit
Total Device Dissipation FR- 5 Board
(Note 1) TA = 25°C Derate above 25°C
225 m W
1.8 m W/°C
Thermal Resistance, Junction to Ambient
Total Device Dissipation (Note 2) Alumina Substrate,(2) TA = 25°C Derate above 25°C
Rq JA PD
°C/W
300 m...
