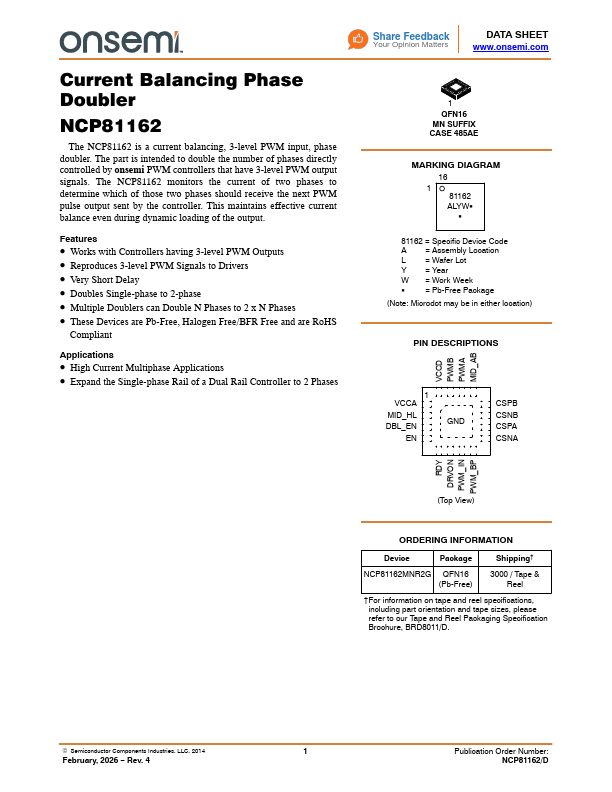

NCP81162
Features
- Works with Controllers having 3-level PWM Outputs
- Reproduces 3-level PWM Signals to Drivers
- Very Short Delay
- Doubles Single-phase to 2-phase
- Multiple Doublers can Double N Phases to 2 x N Phases
- These Devices are Pb-Free, Halogen Free/BFR Free and are Ro HS pliant
Applications
- High Current Multiphase Applications
- Expand the Single-phase Rail of a Dual Rail Controller to 2 Phases
Share Feedback
Your Opinion Matters
DATA SHEET .onsemi.
1 QFN16 MN SUFFIX CASE 485AE
MARKING DIAGRAM 16
1 81162 ALYWG G
81162 = Specific Device Code A = Assembly Location L = Wafer Lot Y = Year W = Work Week G = Pb-Free Package (Note: Microdot may be in either location)

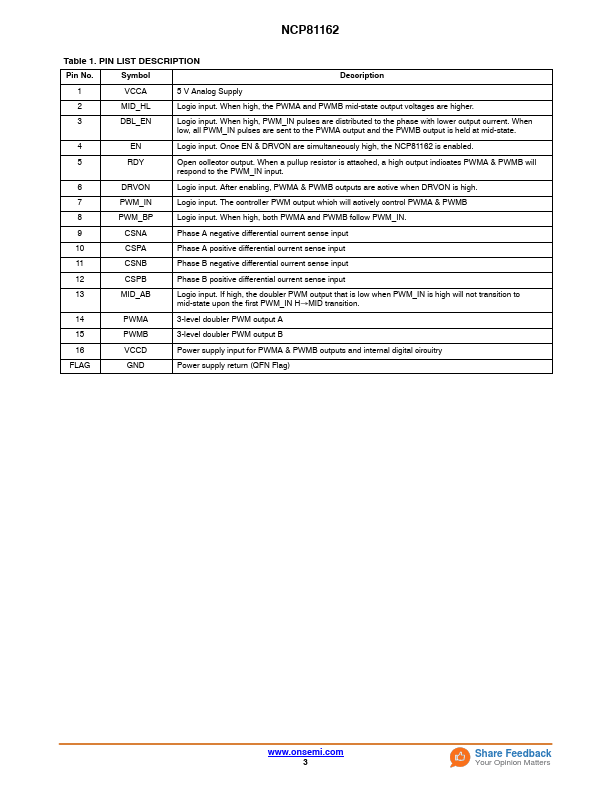

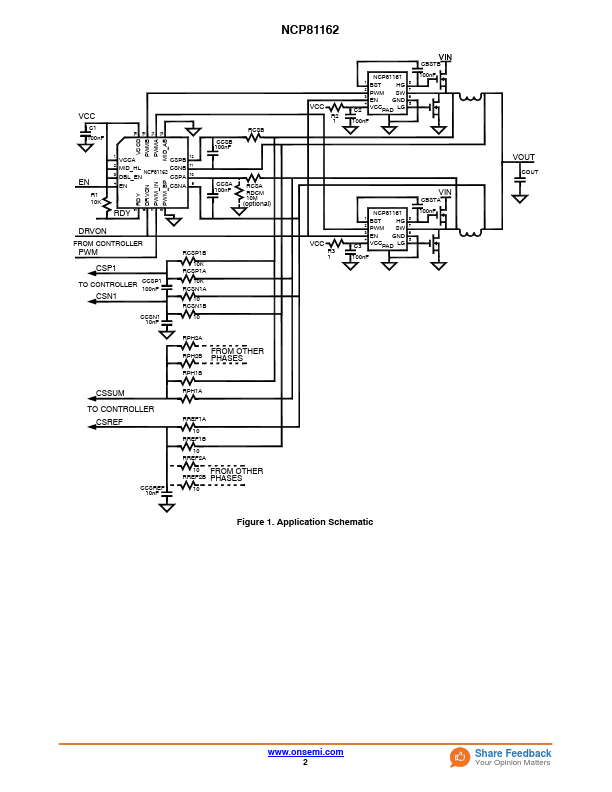

PIN DESCRIPTIONS
VCCD PWMB PWMA MID_AB
1 VCCA
MID_HL DBL_EN
CSPB CSNB CSPA CSNA
RDY DRVON PWM_IN PWM_BP
(Top View)
ORDERING INFORMATION
Device
Package
Shipping†
NCP81162MNR2G QFN16 (Pb-Free)
3000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape...
